| Product Overview |
|---|
|
| Type: | G, C, D |
| Sheath Diameter: | 1.6, 3.2, 6.4, 8.0 mm |
| Sheath Material: | Tantalum, Molybdenum, Inconel 600, Ceramic etc |
| Standard Transition Sleeve: | SS316 or INCONEL |
| Insulation Material: | Magnesium Oxide, Aluminium Oxide, Beryllium Oxide, Hafnium Oxide |
| Type | Names of Materials | Application Range | PDF’s | Application |
|---|---|---|---|---|
| C | Tungsten5% Rhenium (+) Tungsten26% Rhenium(-) | 0 to 2320°C |  |
Vacuum Inert and Reducing |
| D | Tungsten 3% rhenium(+) Tungsten 26% rhenium (-) | 0 to 2320°C | |
Vacuum Inert and Reducing |
| G | Tungsten(+) Tungsten 26% Rhenium (-) | 0 to 2320°C | Vacuum Inert and Reducing |
Models
T-988

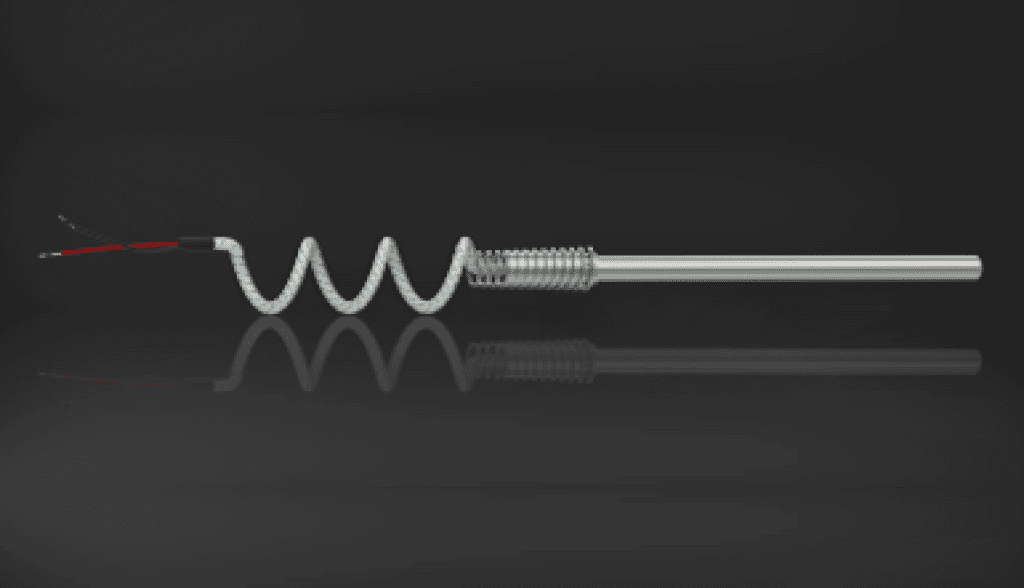

T-988 ULTRA HIGH TEMPERATURE THERMOCOUPLE WITH CABLE
T-989

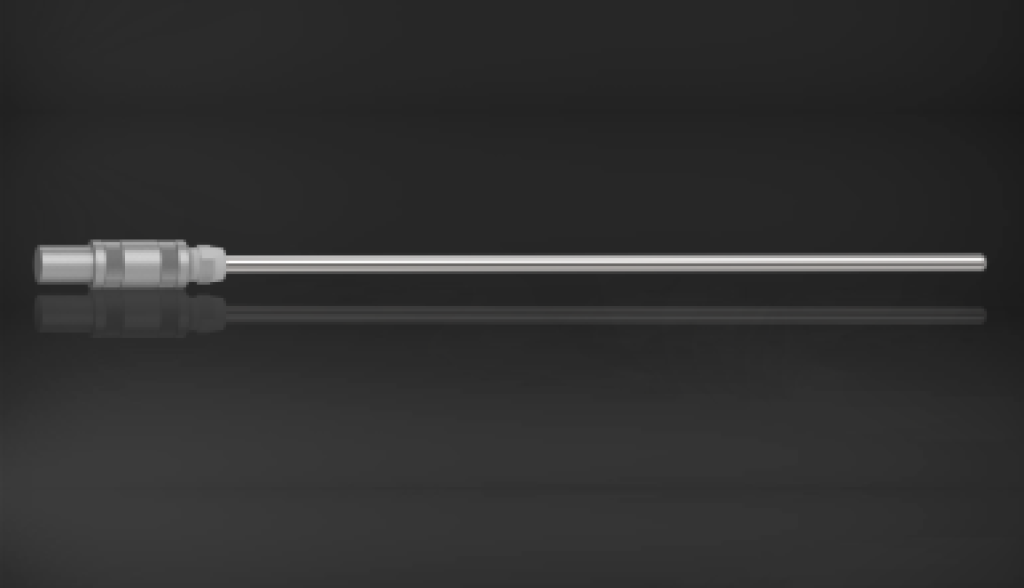

T-989 ULTRA HIGH TEMPERATURE THERMOCOUPLE WITH LEMO CONNECTOR
T-990

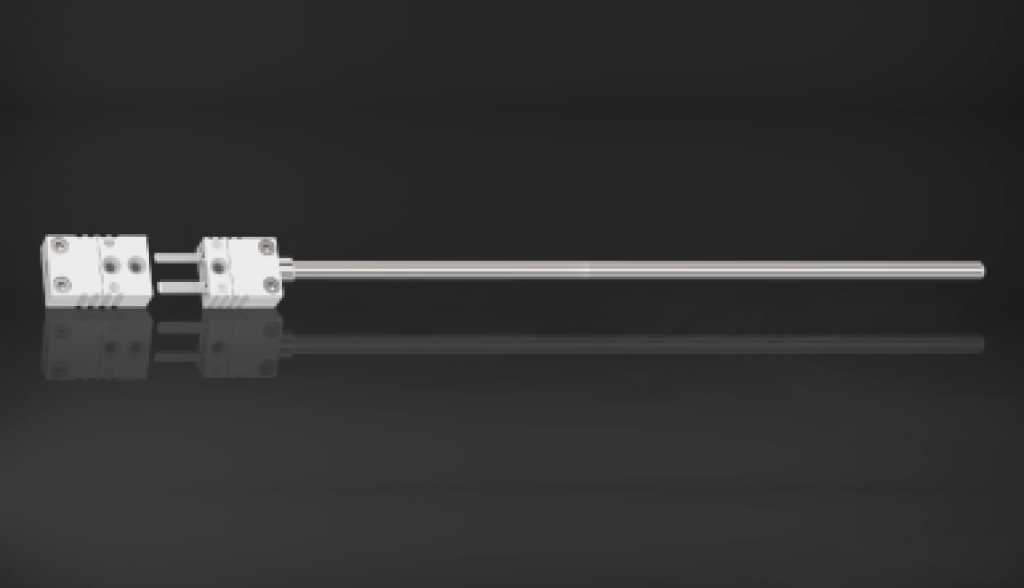

T-990 ULTRA HIGH TEMPERATURE THERMOCOUPLE WITH MALE FEMALE CONNECTOR
T-991

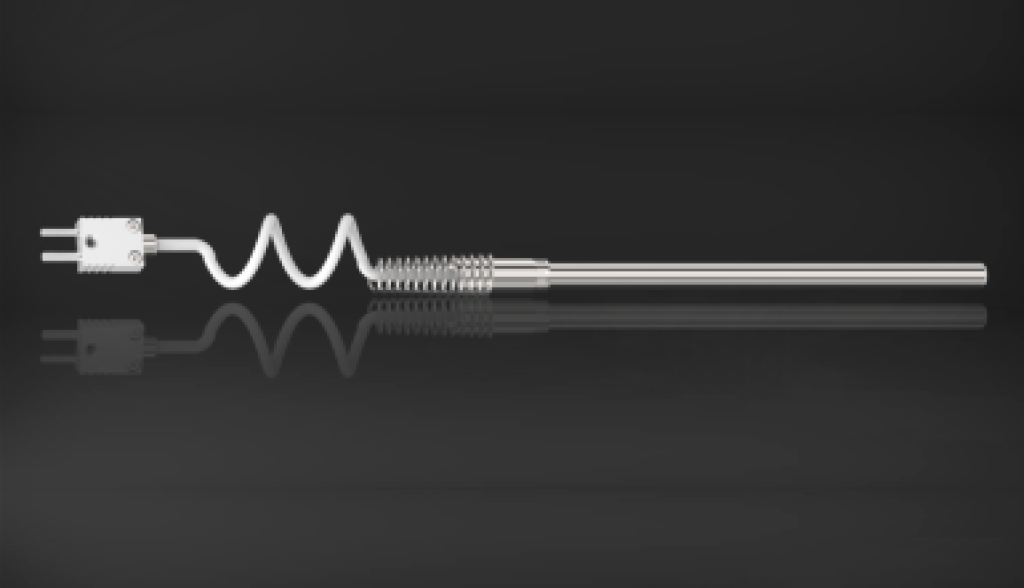

T-991 ULTRA HIGH TEMPERATURE THERMOCOUPLE WITH TRANSITION JOINT
T-992

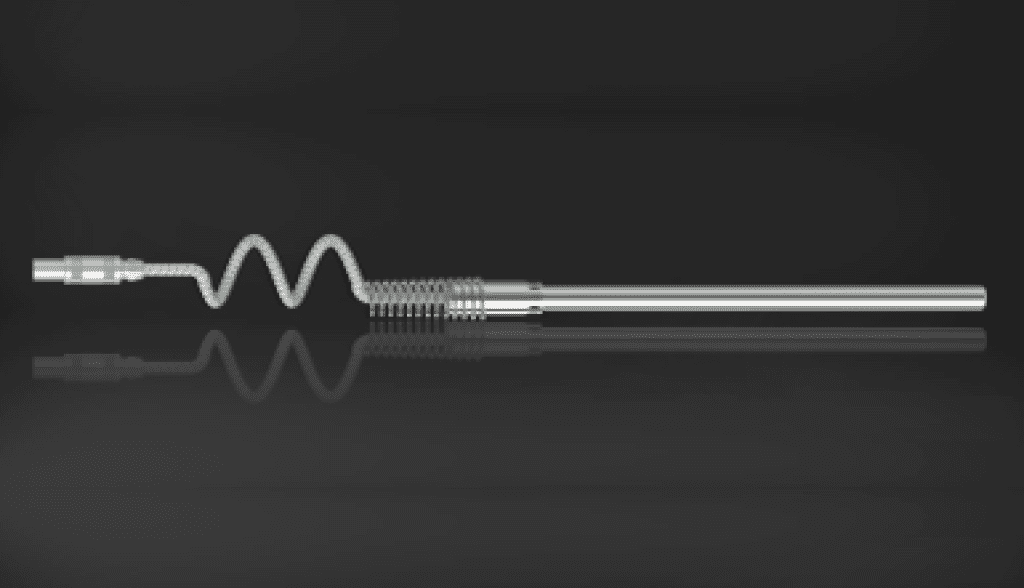

T-992 ULTRA HIGH TEMPERATURE THERMOCOUPLE, TRANSITION JOINT WITH LEMO CONNECTOR
