Product Overview
Wintherm offers both Temperature and Pressure Gauges for various application areas. The models offered include Bi metallic Thermometer, Gas Expansion Thermometers, Bourdon Type Pressure Gauge, Diaphragm Type pressure gauges, etc



Features

Temperature Gauge

Temperature gauges offered have Bi-metal, Liquid Filled, Gas Expansion as sensing elements. These types have accuracy of Class 1 as per EN13190/IS13211 standard.
Temperature Range

Minimum -40˚C, Maximum 650˚C

Dial Size63, 80, 100, 150, 250 mm
Stem Diameter

6, 8, 10, 12 mm

Process Connection1/8”, 1/4”, 3/8”, 1/2” BSP/NPT (M/F)
MountingCenter Back, Bottom Direct, Every Angle Mounting

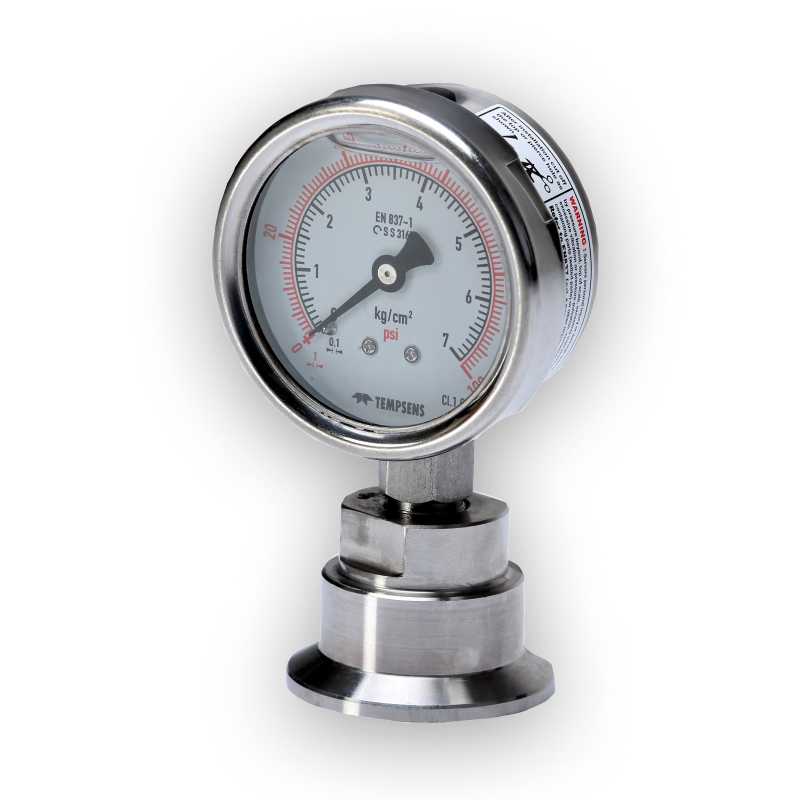

Pressure Gauges

A pressure gauge is a technique of measuring or estimating fluid, gas, water, or intensity of steam in a pressure-powered machine giving assurance regarding leaks or pressure changes that would influence the performance of the system.  Any deviation from acceptable standards can truly influence the workings of the system.

Sensing ElementBourdon Tube, Sealed Diaphragm, Compact Sealed Diaphragm, Schaffer Diaphragm, Capsule Diaphragm
Dial Size40, 50, 63, 80, 100, 150, 250 mm
RangeVacuum, Compound, 0…1Kg/cm² to 0…2100Kg/cm²
Accuracy±1% FSD
StandardIS 3624, EN837
MountingBottom/Back Direct, Bottom Surface, Back Panel, Back Bracket Mounting
