| Product Overview |
|---|
|
| Type: | R, S, B |
| Element Diameter: | 0.30, 0.35, 0.4, 0.45, 0.5 mm other sizes on request |
| Sheath Material: | Recrystallized Alumina Ceramic(C-799), 610, Inconel, Silicon Carbide, Platinum, etc |
| Configuration: | Simplex/ Duplex/ Multipoint |
| Special: | Hot Blast & Stove Dome Thermocouples, Tri-Level Thermocouples, Crown Thermocouples |
| Type | Names of Materials | Application Range | PDF’s | Application |
|---|---|---|---|---|
| R | Platinum 13% Rhodium(+) Platinum (-) | 0 to 1450°C |  |
Inert Media, Oxidizing media |
| S | Platinum 10% Rhodium (+) Platinum (-) | 0 to 1450°C | |
Inert Media, Oxidizing media |
| B | Platinum 30% Rhodium (+) Platinum 6% Rhodium (-) | 800 to 1700°C | |
Inert Media, Oxidizing media |
MODELS

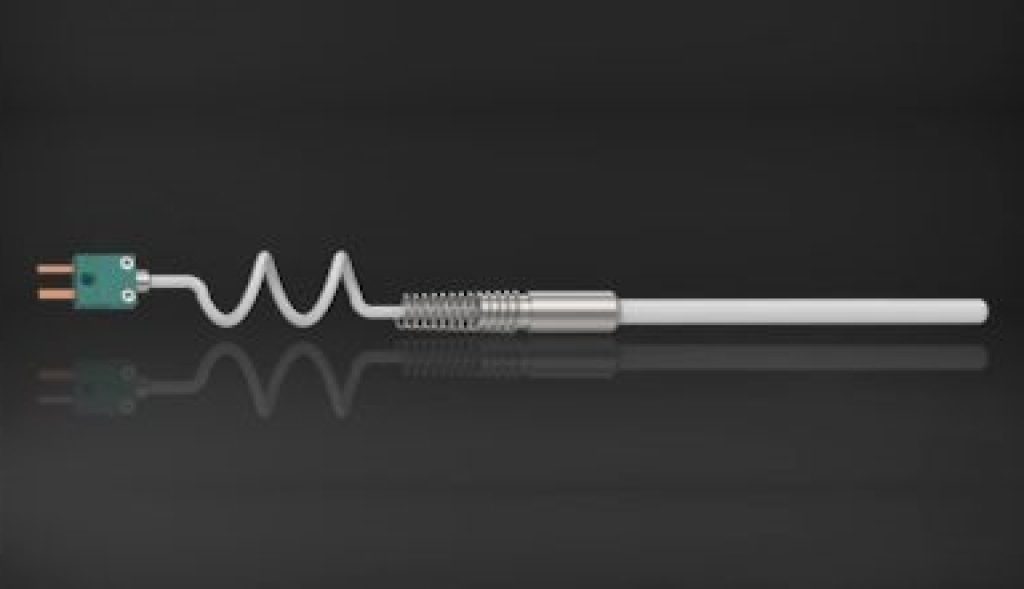

T-800
T-800 STANDARD THERMOCOUPLE WITH CABLE & M-F CONNECTOR

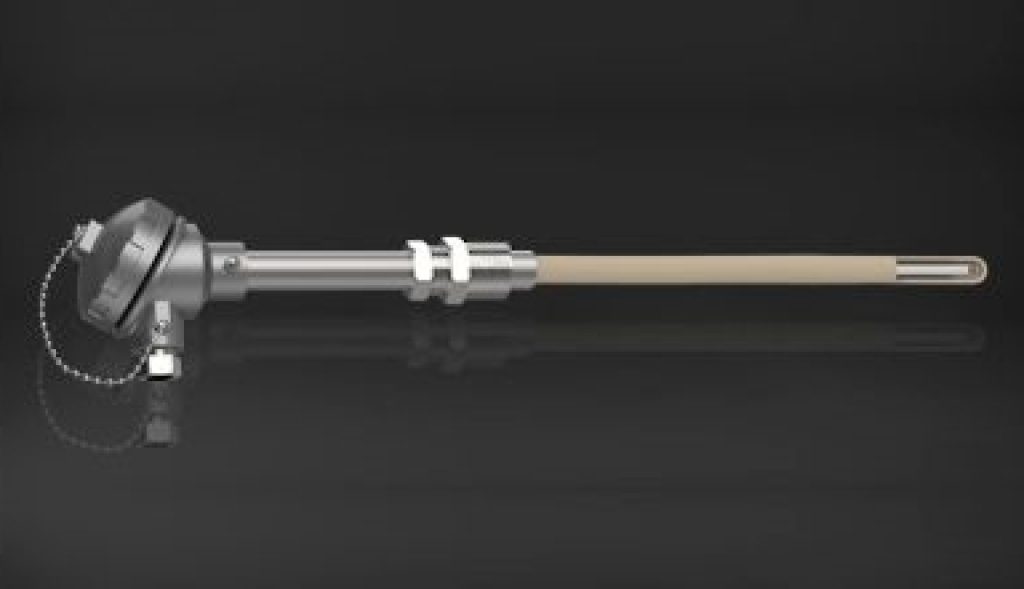

T-803
T-803 STANDARD THERMOCOUPLE

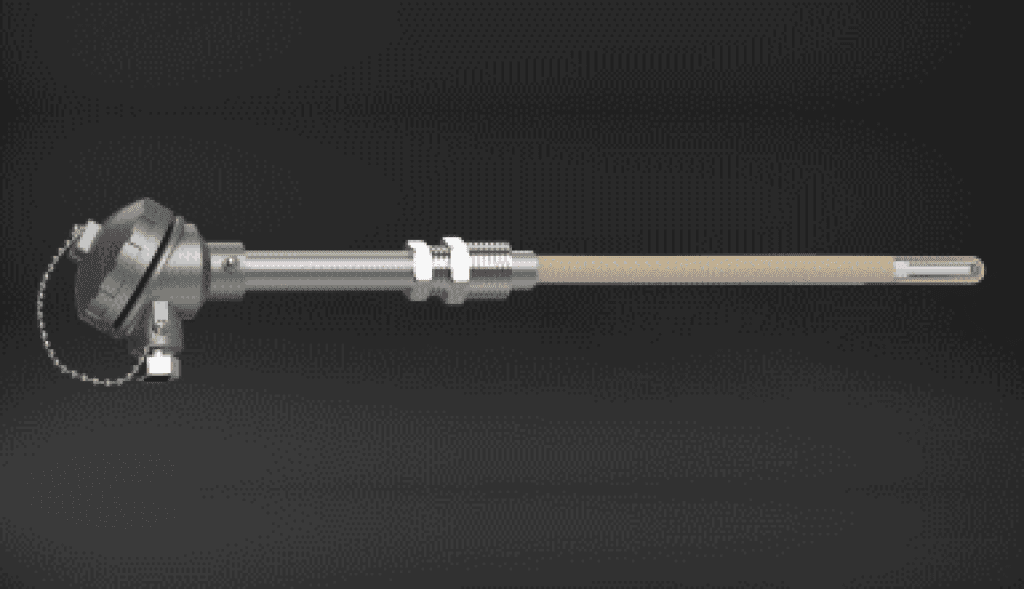

T-804
T-804 THERMOCOUPLE WITH DOUBLE PROTECTION TUBE & ADJUSTABLE FITTING

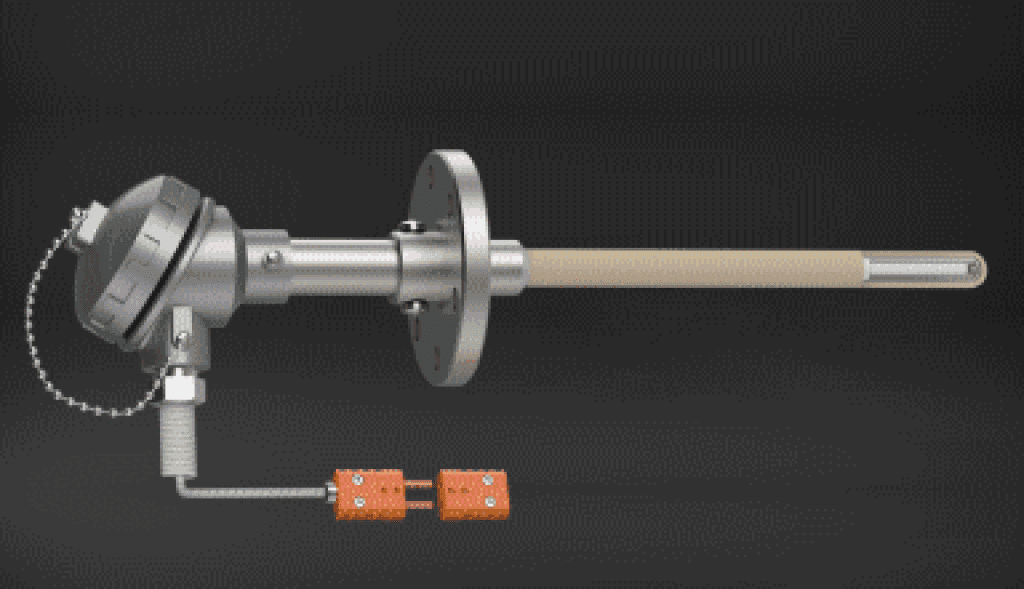

T-805
T-805 THERMOCOUPLE WITH DOUBLE PROTECTION TUBE & ADJUSTABLE FLANGE

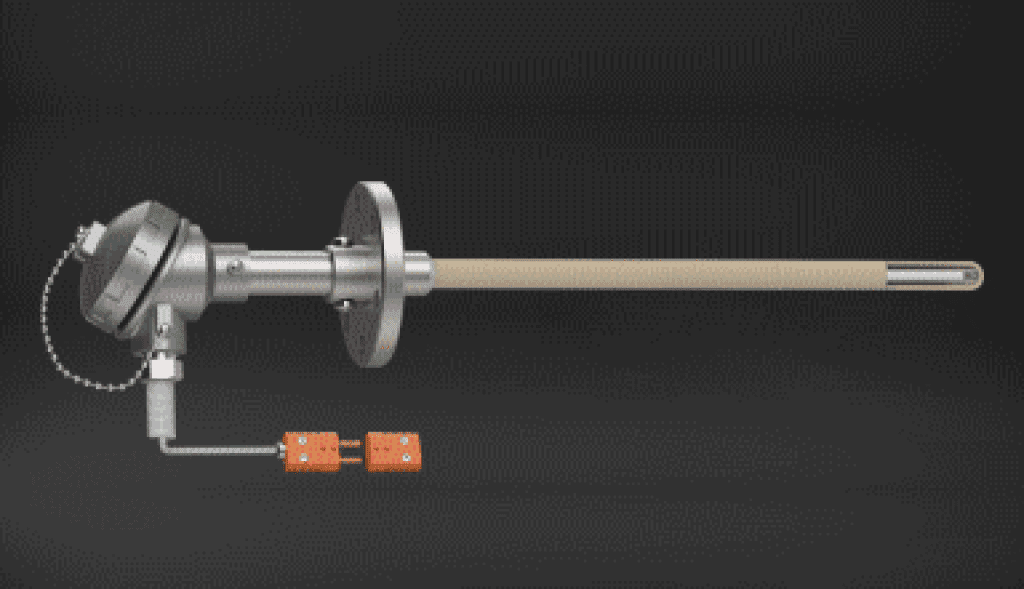

T-806
T-806 THERMOCOUPLE WITH SINGLE PROTECTION TUBE & ADJUSTABLE FLANGE

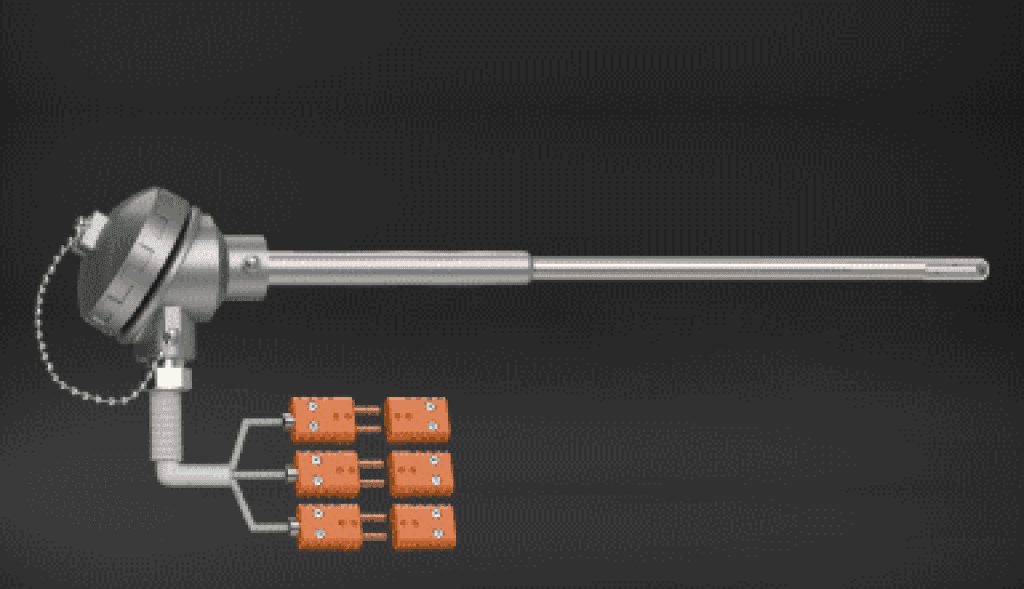

T-900
T-900 TRI-LEVEL THERMOCOUPLE WITH LONG PT THIMBLE

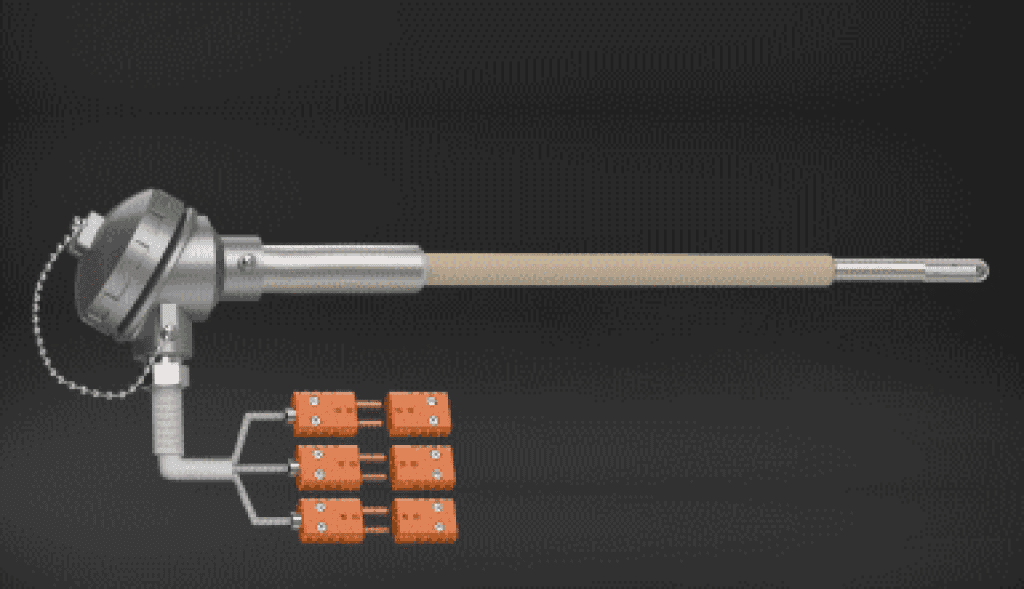

T-901
T–901 TRI-LEVEL PT-RH THERMOCOUPLE WITH SMALL PT THIMBLE

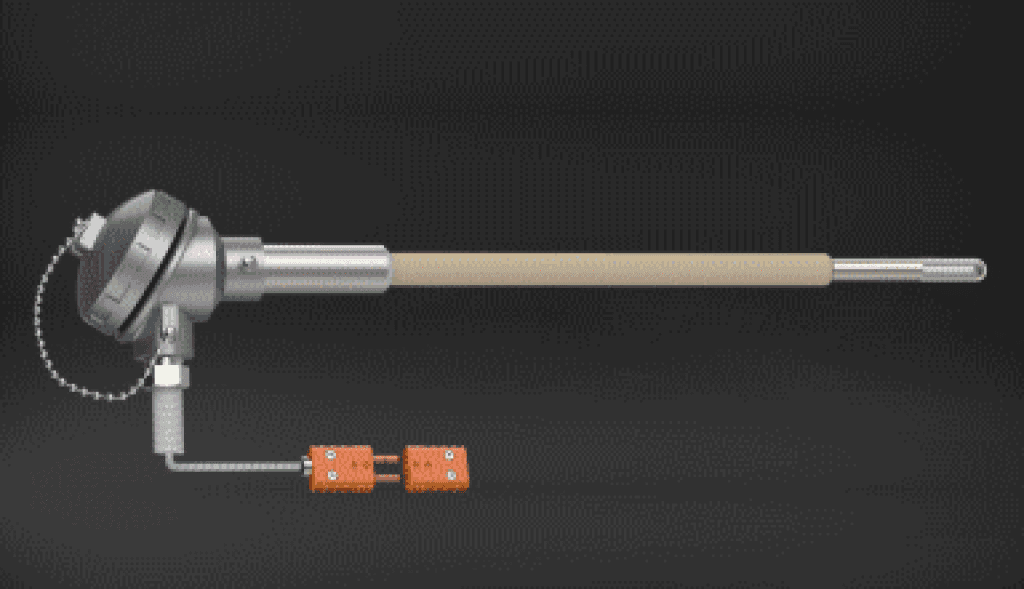

T-902
T–902 SINGLE LEVEL THERMOCOUPLE WITH SMALL PT THIMBLE

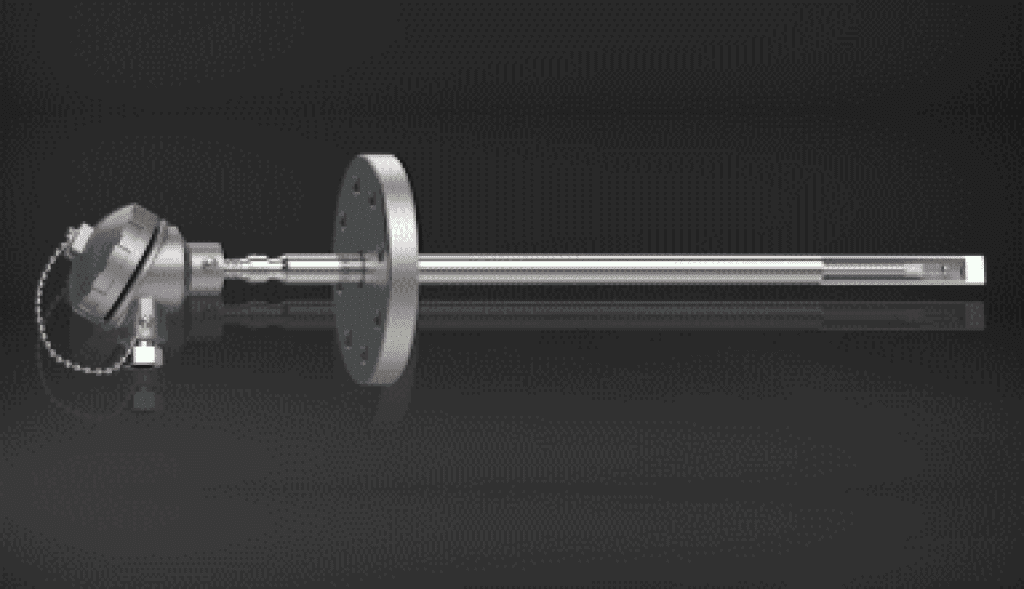

T-903
T-903 THERMOCOUPLE WITH OUTER-INNER PROTECTION TUBE & COUNTER FLANGE

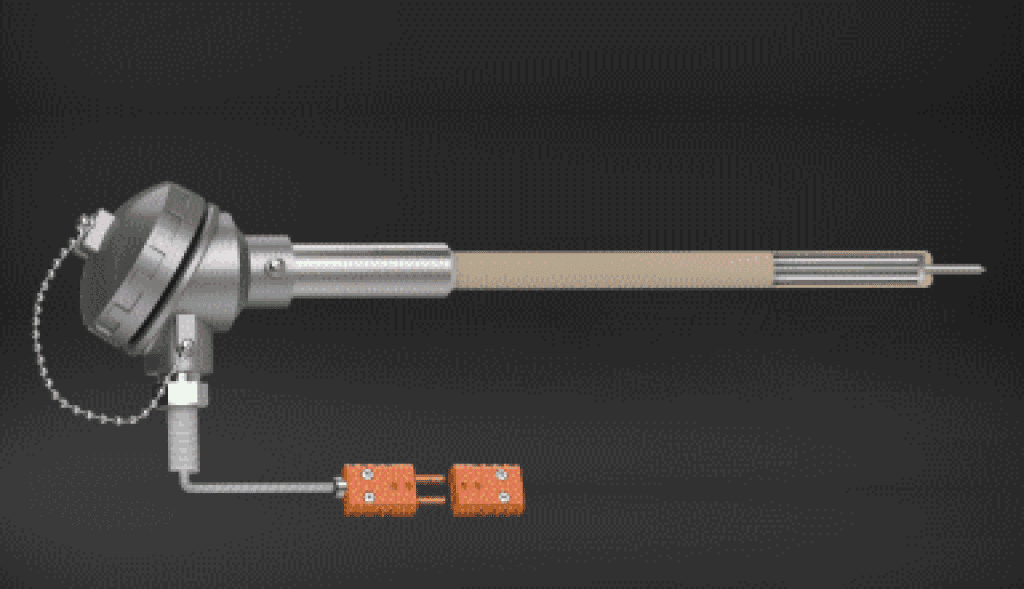

T-904
T-904 GLASS LEVEL PROBE/ ELECTRODE

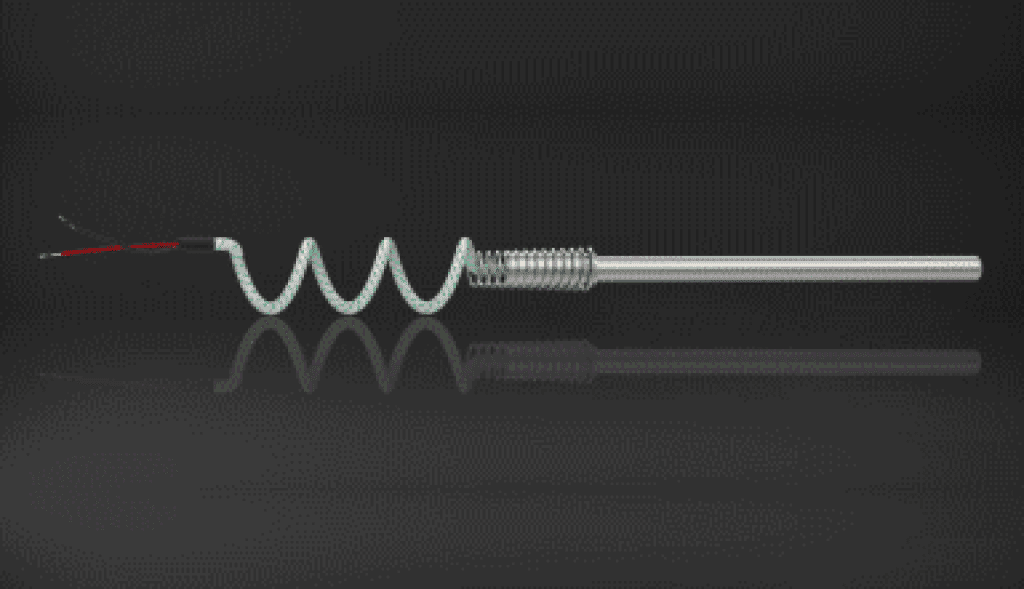

T-988
T-988 ULTRA HIGH TEMPERATURE THERMOCOUPLE WITH CABLE

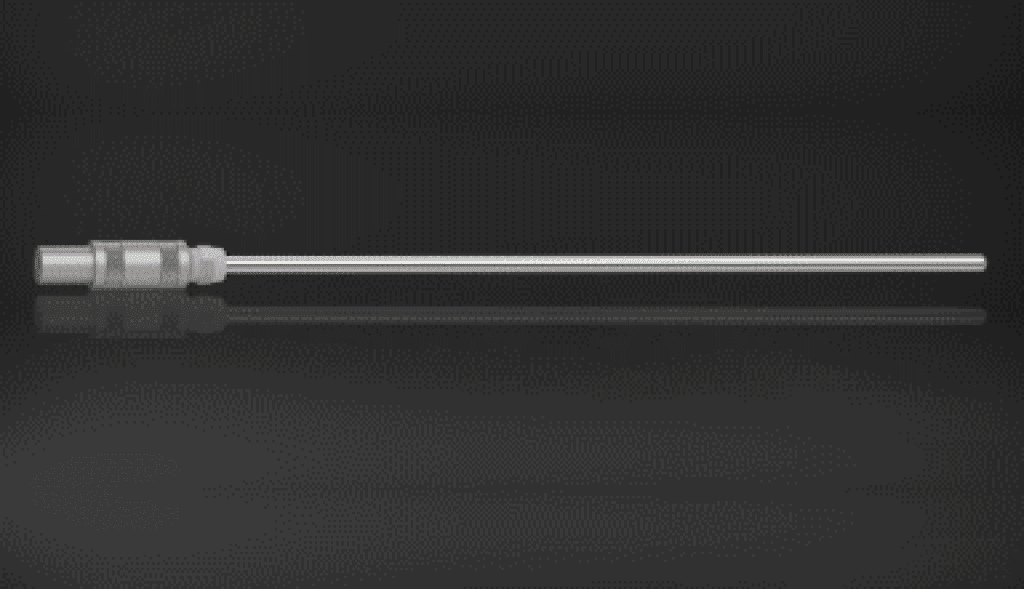

T-989
T-989 ULTRA HIGH TEMPERATURE THERMOCOUPLE WITH LEMO CONNECTOR
T-990
T-990 ULTRA HIGH TEMPERATURE THERMOCOUPLE WITH MALE FEMALE CONNECTOR

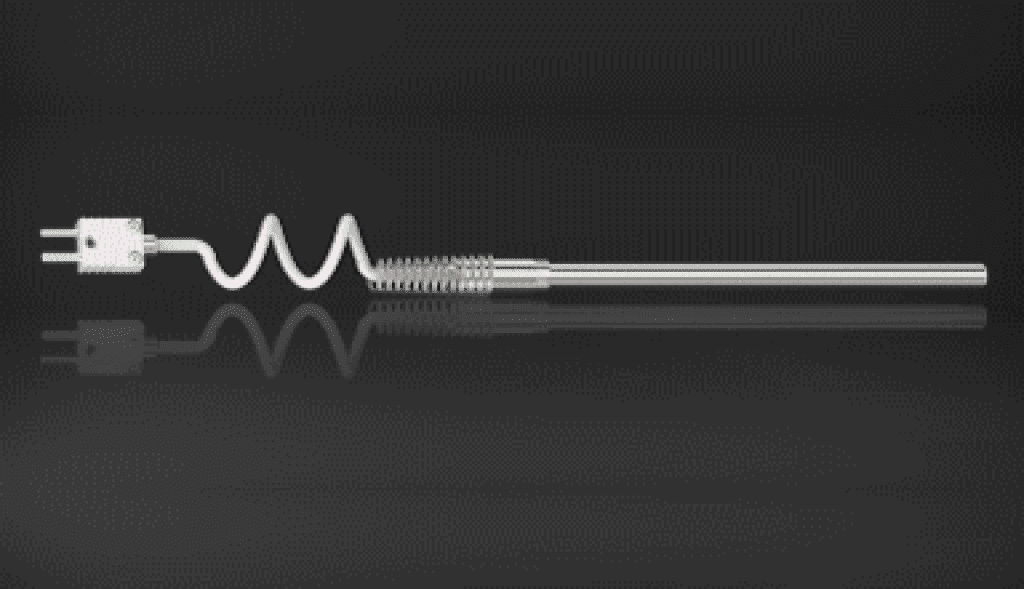

T-991
T-991 ULTRA HIGH TEMPERATURE THERMOCOUPLE WITH TRANSITION JOINT
