| Product Overview |
|---|
|
| Type: | J, K, T, E, N, R, S |
| Element size (MI): | 0.25, 0.5, 1.0, 1.5, 3.0, 4.5, 6.0, 8.0 mm Other sizes on request |
| Sheath Material: | SS321, SS316, SS310, HRS 446, Inconel 600, Nimonic, Pyrosil, Platinum etc. |
| Configuration: | Simplex/ Duplex/ Multipoint
|
| Type | Names of Materials | Application Range | PDF’s |
|---|---|---|---|
| J | Iron (+) Constantan (-) | -40 to 750°C |  |
| K | Chromel (+) Alumel (-) | -200 to 1200°C | |
| T | Copper (+) Constantan (-) | -200 to 350°C | |
| E | Chromel (+) Constantan (-) | -200 to 900°C | |
| N | Nicorsil (+) Nisil (-) | -200 to 1200°C | |
| R | Platinum 13% Rhodium (+) Platinum (-) | 0 to 1600°C | |
| S | Platinum 10% Rhodium (+) Platinum (-) | 0 to 1600°C | |
MODELS

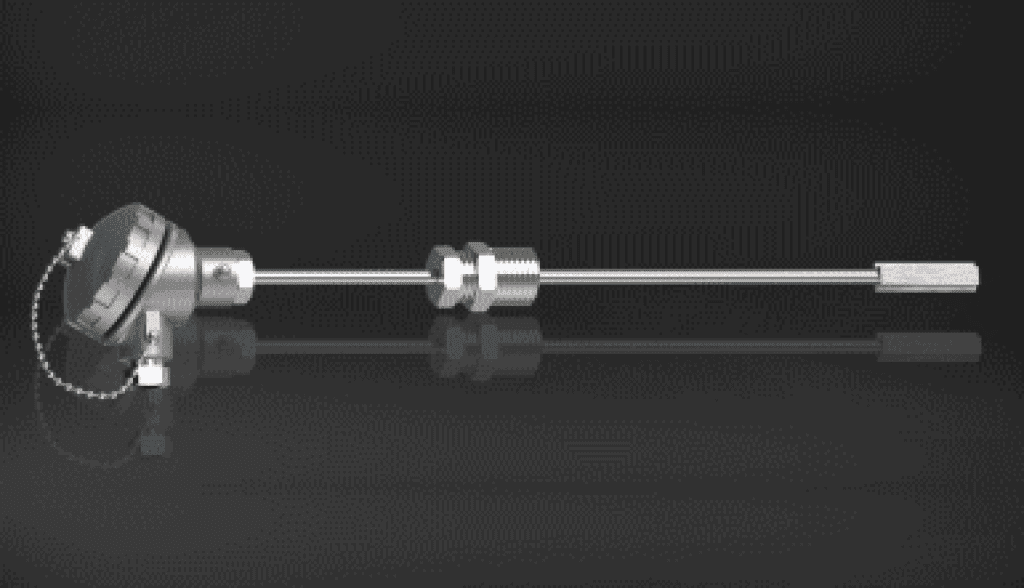

T-103
T-103 THERMOCOUPLE WITH HEAD & TIP ASSEMBLY11
T-104

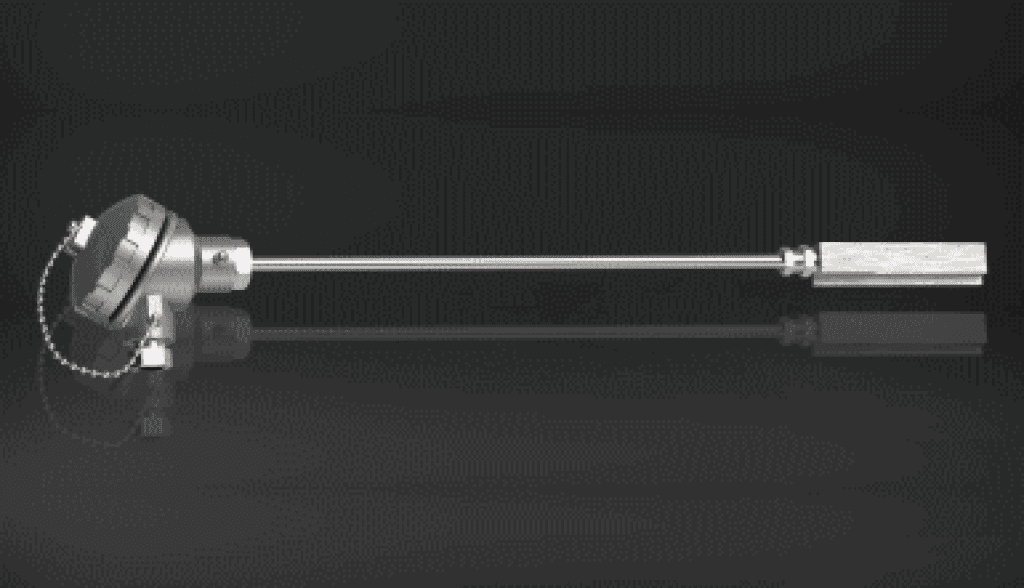

T-104 THERMOCOUPLE WITH HEAD AND WELD PAD

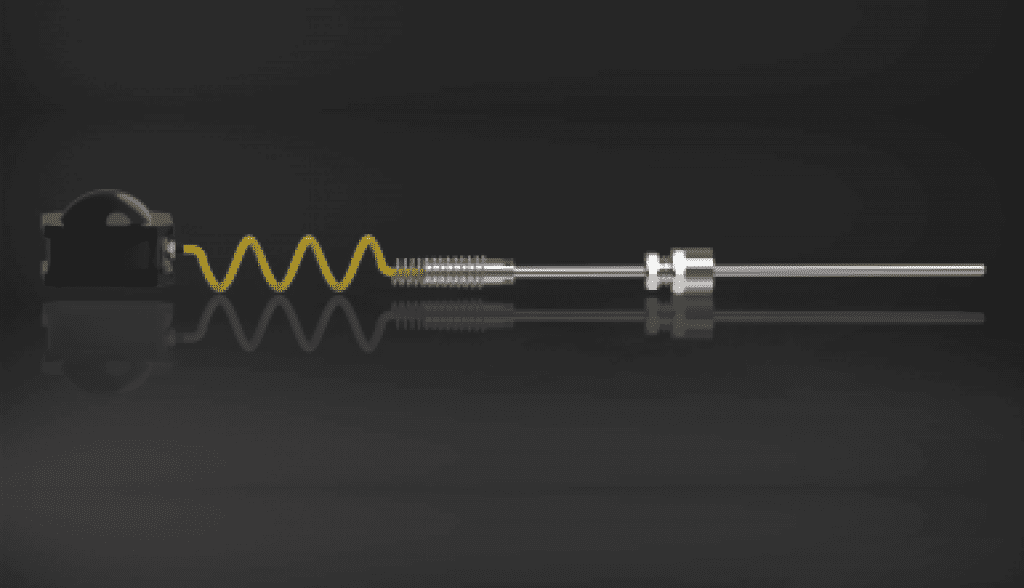

T-274
T-274 THERMOCOUPLE WITH THERMOTHERMOCOUPLE WITH JUNCTION BOX & ADJUSTABLE COMPENSATION FITTING WITH STUB
T-345

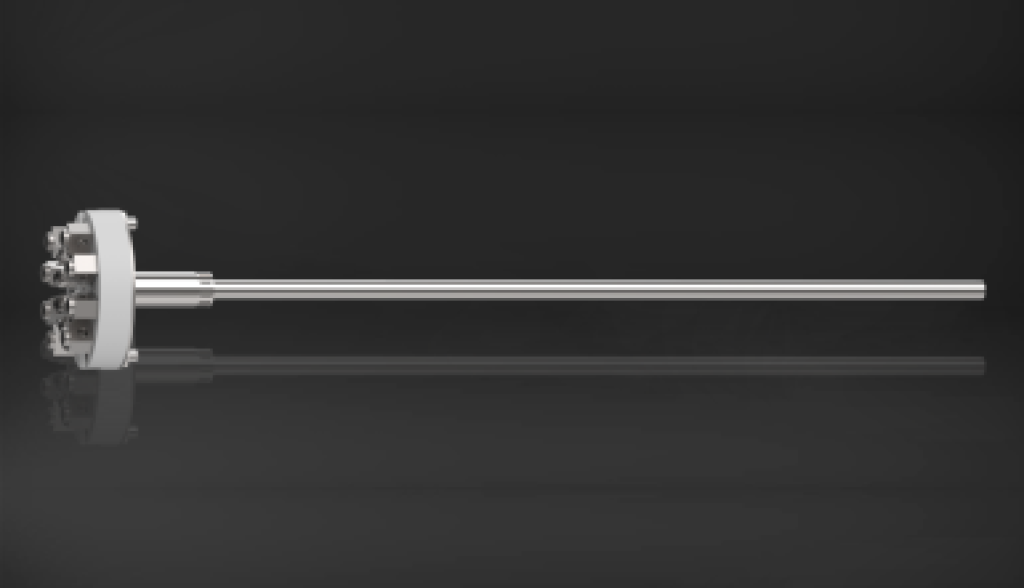

T-345 THERMOCOUPLE INSET

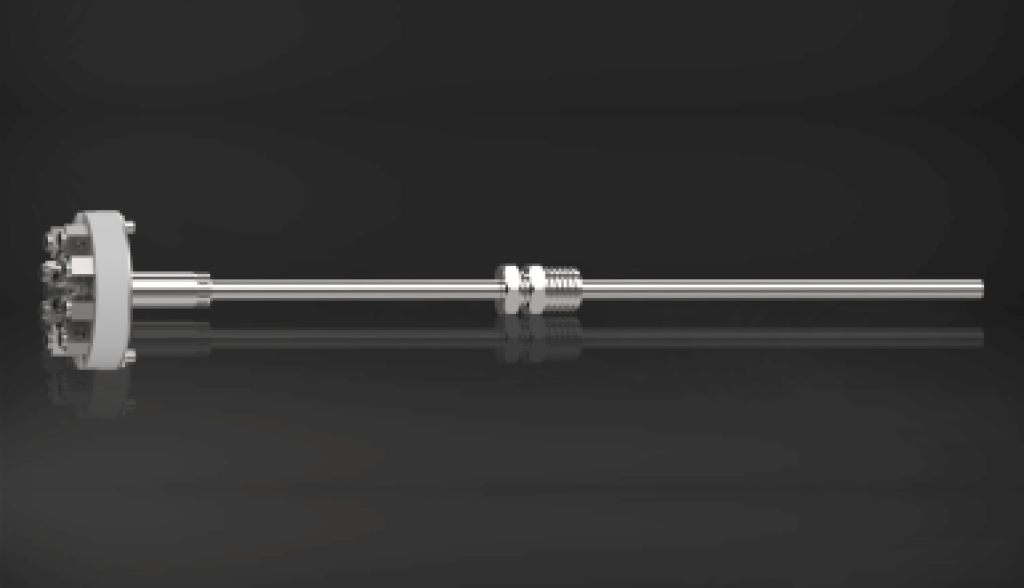

T-344
T-344 THERMOCOUPLE INSET WITH FITTING

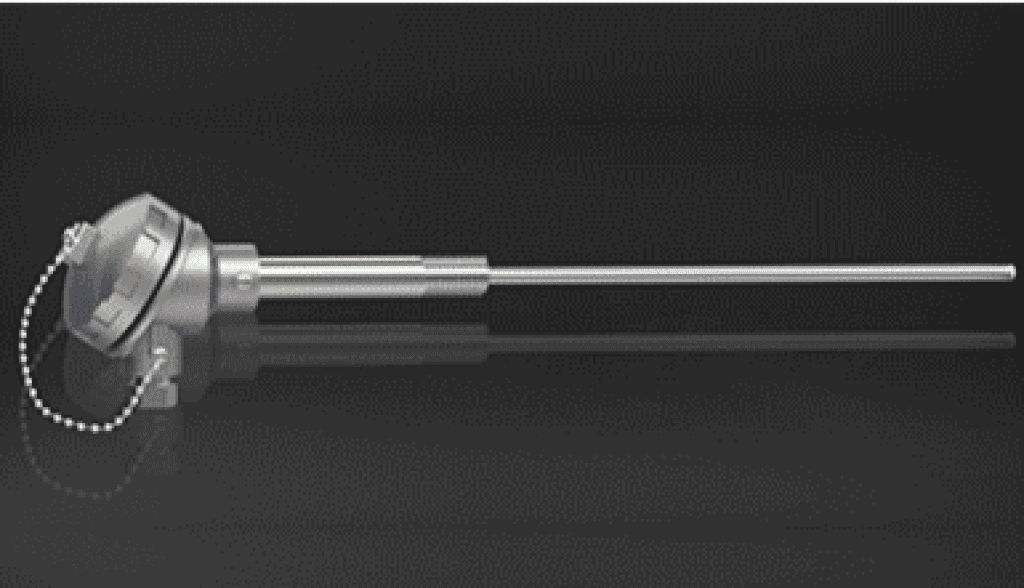

T-105
T-105 THERMOCOUPLE WITH NIPPLE
T-106

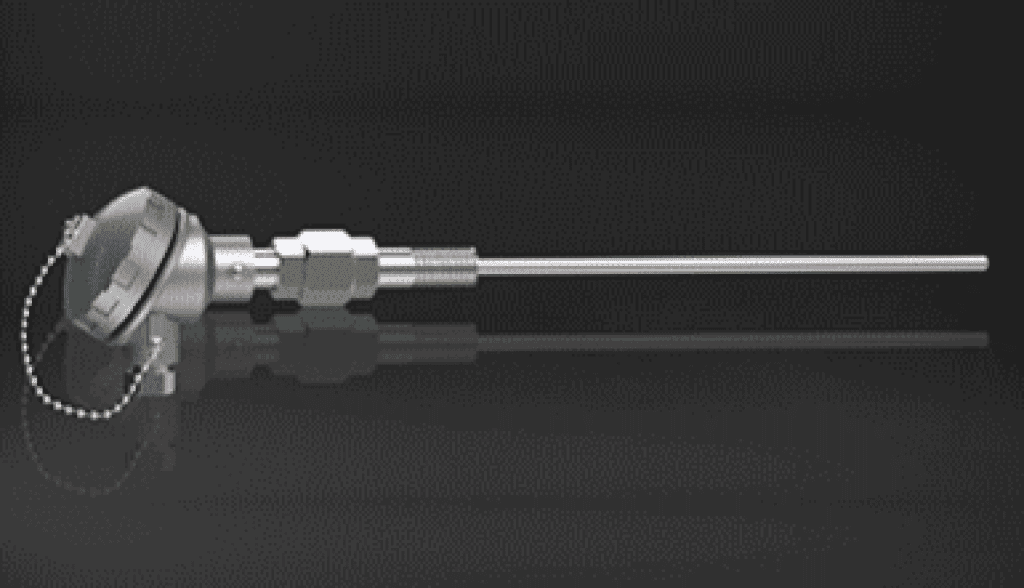

T-106 THERMOCOUPLE INSETTHERMOCOUPLE WITH NIPPLE UNION NIPPLE

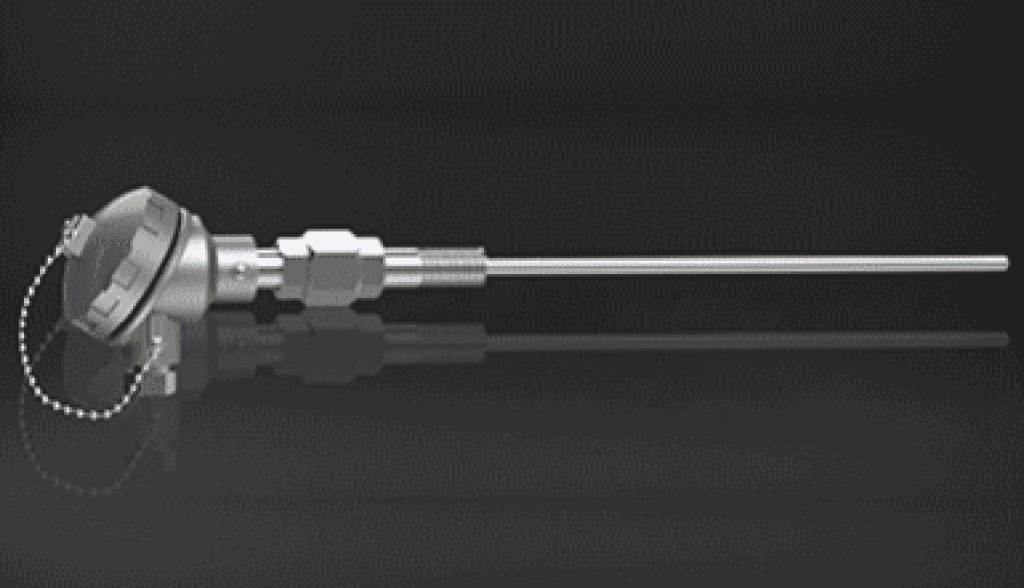

T-101
T-101 THERMOCOUPLE WITH HEAD

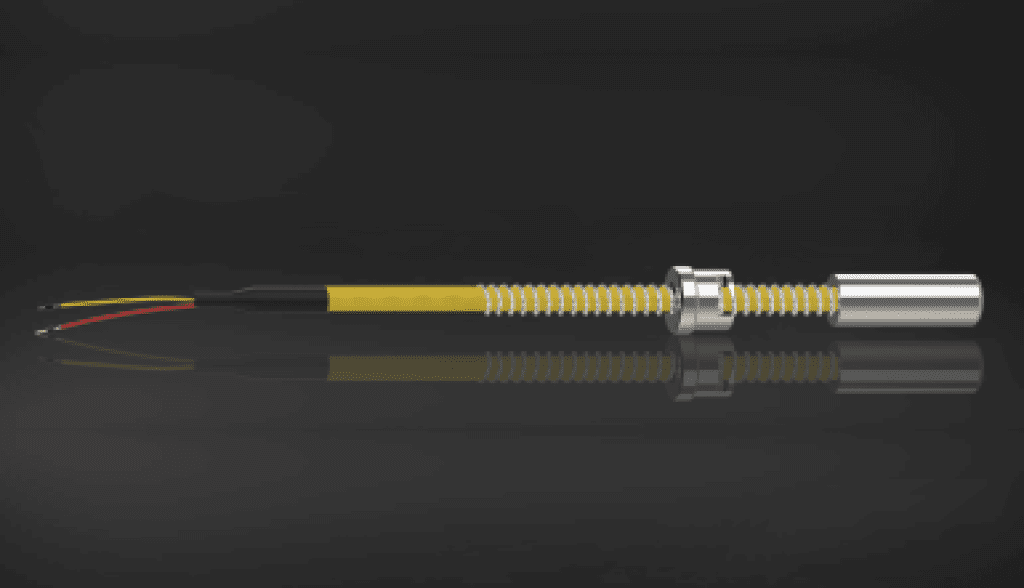

T-203
T-203 THERMOCOUPLE WITH BAYONET & CABLE
T-204

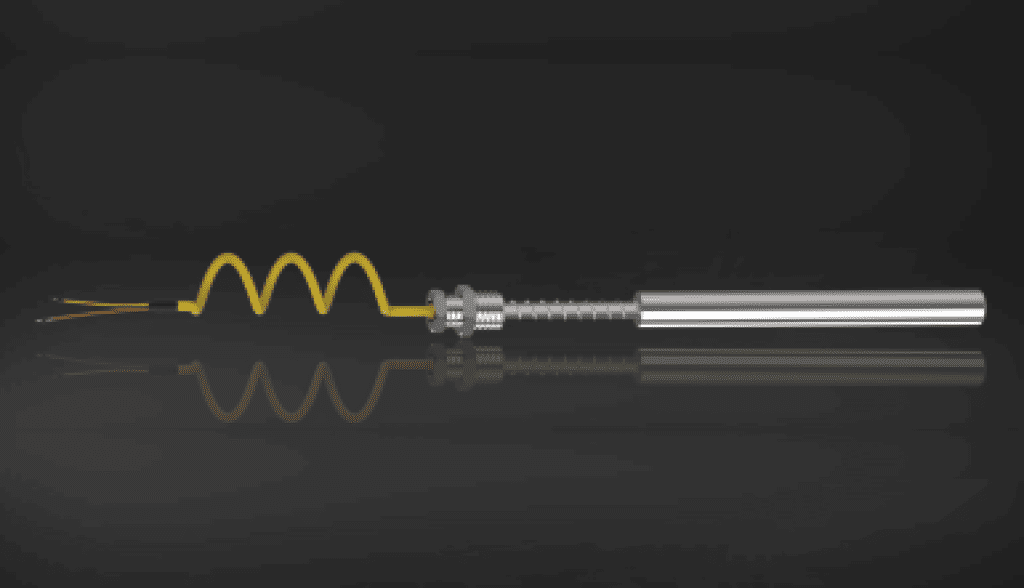

T-204 THERMOCOUPLE WITH CABLE & FITTING (SPRING LOADED)

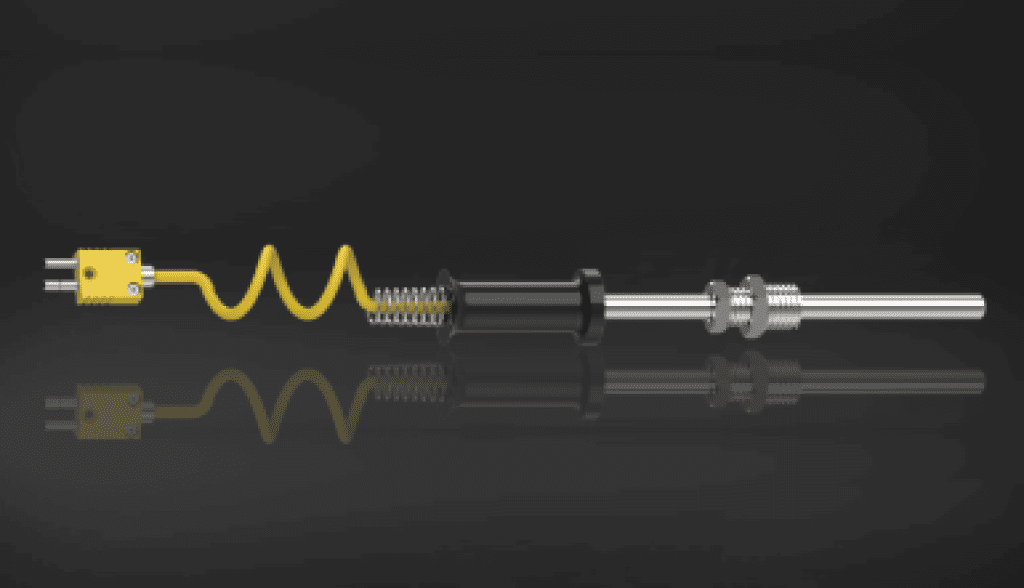

T-272
T-272 THERMOCOUPLE (PROBE) WITH CABLE & CONNECTOR
T-200
T-272 THERMOCOUPLE WITH CABLE (MINERAL INSULATED)
T-200

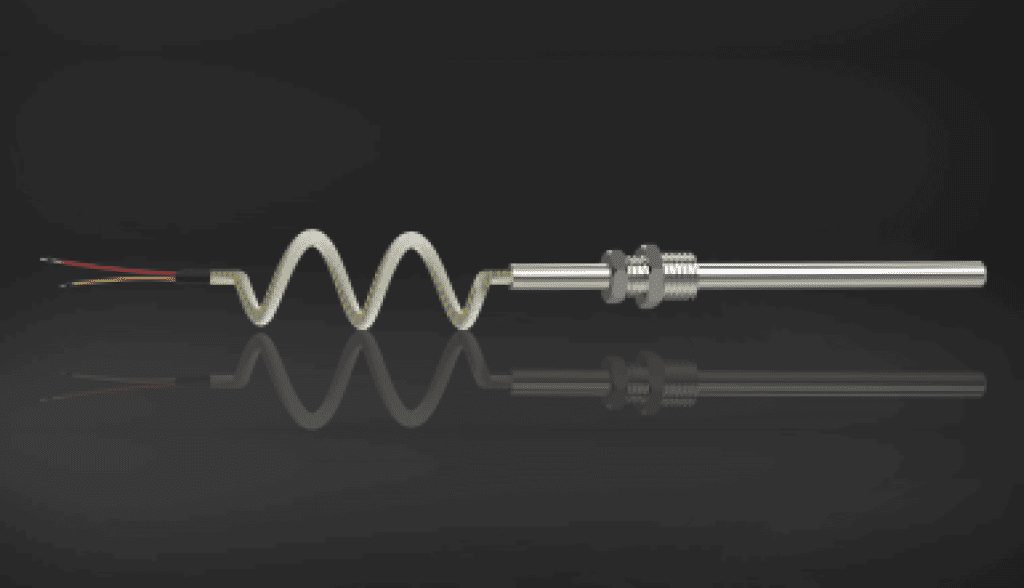

T-200 THERMOCOUPLE WITH CABLE (MINERAL INSULATED)-Chromel-Alumel (Simplex) (K)-1-SS316 (1.4401) (316)-Grounded (GN)-50-1/4″ BSP (1/4BSP)-Teflon/Teflon (A)-500-ANSI MC96.1 (A)

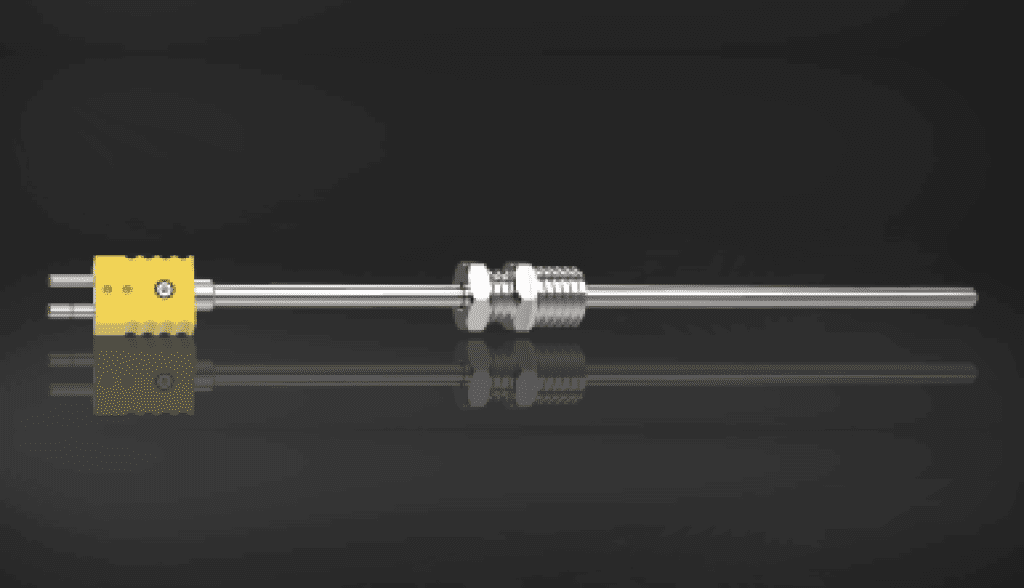

T-343
T-343 THERMOCOUPLE WITH CONNECTOR
