Product description

Main Features
  • Chamber Materials: Vacuum forming ceramic fiber, which has the advantage of no powder drops off with high temperature, and saving energy more than 50%.
  • The furnace installed two sets thermocouples, two sets controllers and heating system.
  • Each heating zone can be controlled separately and it can get two different temperature areas.
  • Built-in RS485 port and USB adaptor as optional setting for computer control, it need to add extra fees.

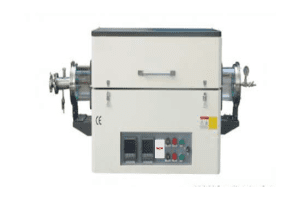

1200°C Split Tube Furnace

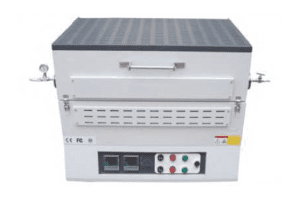

1200°C split tube furnace

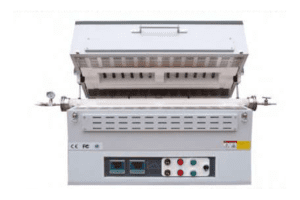

1400°C split tube furnace

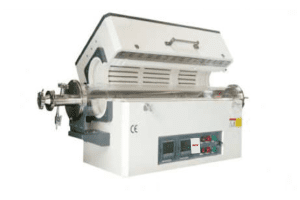

1400°C split tube furnace
Technical Parameters
ModelHeating Zone Length (mm)Reactor TubeTube OD (mm)Max TempOperate TempVoltagePower
WTG-40-12-2A300+300=600mmQuartz TubeΦ40mm1200°C1100°C220V3.6KW
WTG-60-12-2A300+300=600mmQuartz TubeΦ60mm1200°C1100°C220V5.2KW
WTG-80-12-2A300+300=600mmQuartz TubeΦ80mm1200°C1100°C220V5.2KW
WTG-100-12-2A300+300=600mmQuartz TubeΦ100mm1200°C1100°C220V5.2KW
WTG-40-14-2A300+300=600mmAlumina TubeΦ40mm1400°C1300°C220V4KW
WTG-60-14-2A300+300=600mmAlumina TubeΦ60mm1400°C1300°C220V6KW
WTG-80-14-2A300+300=600mmAlumina TubeΦ80mm1400°C1300°C380V8KW
WTG-100-14-2A300+300=600mmAlumina TubeΦ100mm1400°C1300°C380V10KW
WTG-40-17-2A300+300=600mmAlumina TubeΦ40mm1700°C1600°C220V6KW
WTG-60-17-2A300+300=600mmAlumina TubeΦ60mm1700°C1600°C380V8KW
WTG-80-17-2A300+300=600mmAlumina TubeΦ80mm1700°C1600°C380V10KW

Tube Furnace >>

The Overview of Tube Furnace
Tube Furnace is a compact heating equipment widely used in so many fields like metallurgy, glass heat treatment, lithium battery, positive and negative electrolyte, abrasive tools and other industries. It is used to measure the structural state of materials at a certain temperature for small samples. It is generally used in colleges and universities, industrial and mining enterprises, research institutions, etc. Tube furnace also has the advantage of providing a vacuum and atmosphere working environment for heating easily with lower cost.
waves
HRE Resistance Wire
thermometer
N-Type Thermocouple
air-conditioning
PID Temperature Control

The factors to select a suitablr tube furnace:

What is the operating temperature?
  • WINTHERM tube furnace mainly with range of 1200°C, 1400°C, 1700°C and OEM 1800°C.
  • When real operating lower than 1200°C, we generally use high grade HRE spiral wire coils as heating element.
  • When real operating lower than 1400°C, we generally use high grade SIC ( Silicon Carbide Heaters ) heating element.
  • When real operating lower than 1700°C, we generally use high grade MoSi2 ( Molybdenum Disilicide Heaters ) heating element.
  • Continuous operating temp will be 100°C below the max temp design and right using will extend the furnace service life.
  • Furnaces are designed to operate at high temperatures. Operation below temperatures of approximately 600 °C will be less accurate and continuous use at low temperatures may reduce the element life of some furnaces, ie MoSi2 heated furnaces.
Split type or Non-split type.
  • For 1200°C tube furnaces, we generally do with Split type as standard with easily replace tube and also fast cooling.
  • For the 1400°C tube furnaces, we generally do with Non-split type as standard, but also we can do split type.
  • For the 1700°C tube furnaces, we generally do with Non-split type as standard, but also we can do vertical split type.
Horizontal or Vertical Tube need?
WINTHERM have horizontal and vertical tube furnace for choosing. Also, we can do it according to your special request for both combined using.
What is the outer diameter of the working tube?
  • For the working tube, we generally has quartz tube and alumina ceramic tube two types. Also, some customer will use their own design specially steel tubes for specially using.
  • Quartz tube used for temperature lower than 1200°C. The standard quartz tube OD : Φ25mm, Φ40mm, Φ50mm, Φ60mm, Φ80mm, Φ100mm, Φ120mm, Φ150mm or more larger size.
  • Alumina Ceramic Tube generally used in temp over than 1200°C tube furnaces with standard size tube OD : Φ40mm, Φ60mm, Φ80mm, Φ100mm, For other alumina tube sizes, please check with us for confirm.
What is the heating zone length of the tube furnace ?
WINTHERM manufacture different heating zones tube furnace.
  • Single Heating zone : Standard heating zone length : 300mm. OEM length is available.
  • Dual heating zones : Standard heating zone length : 300+300=600mm. OEM length is available.
  • Three heating zones: Standard heating zone length : 300+300+300=900mm. OEM length is available.
  • Multi-heating zones : different zones and different heating length.
  • More heating zones, the tube will have a much better central constant heating zone length.
