| Product Overview |
|---|
|
| Type: | J, K, T, E, N |
| Element Size: | 1.2,1.6,2.0,2.5,3.2 mm Other sizes on request |
| Sheath Diameter: | 3.0, 4.5, 6.0, 8.0 mm Other sizes on request |
| Sheath Material: | SS304, SS321, SS316, SS310, Inconel 600 |
| Thermowell Material: | HRS 446, Inconel 600/601/800, Nickel, Hastalloy, etc. |
| Configuration: | Simplex/ Duplex/ Multipoint |
| Type | Names of Materials | Application Range | PDF’s | Application |
|---|---|---|---|---|
| J | Iron (+) Constantan (-) | 0 to 750°C |  |
Inert Media, Oxidizing Media, Reducing Media Vaccum |
| K | Chromel (+) Alumel (-) | -200 to 1250°C | |
Inert Media, Oxidizing Media |
| T | Copper (+) Constantan (-) | -200 to 350°C | |
Inert Media, Oxidizing Media, Reducing Media Vaccum |
| E | Chromel (+) Constantan (-) | -200 to 900°C | |
Inert Media, Oxidizing media |
| N | Nicorsil (+) Nisil (-) | -270 to 1300°C | |
Inert Media, Oxidizing media |
MODELS

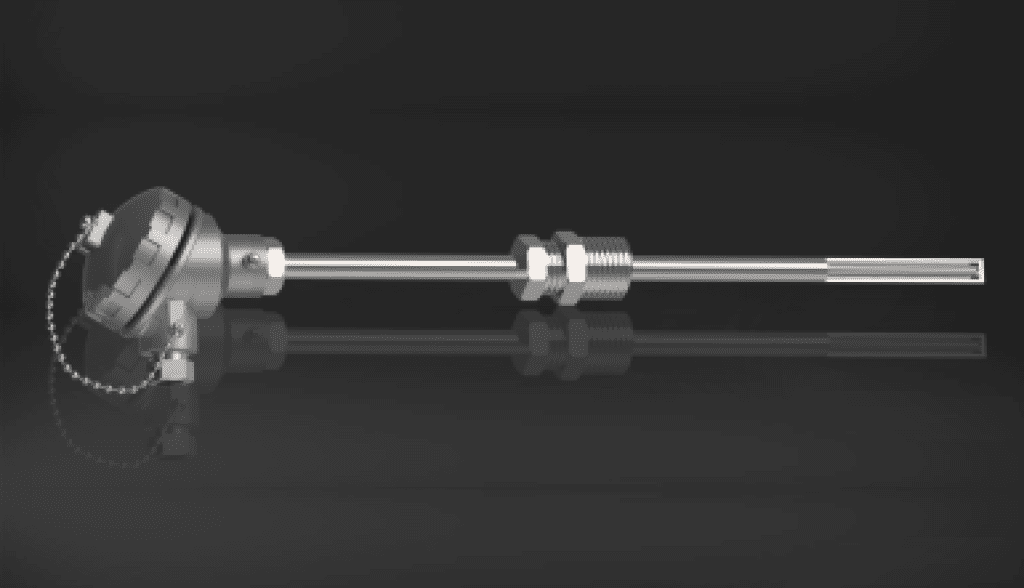

T-501
T-501 THERMOCOUPLE WITH THERMOWELL

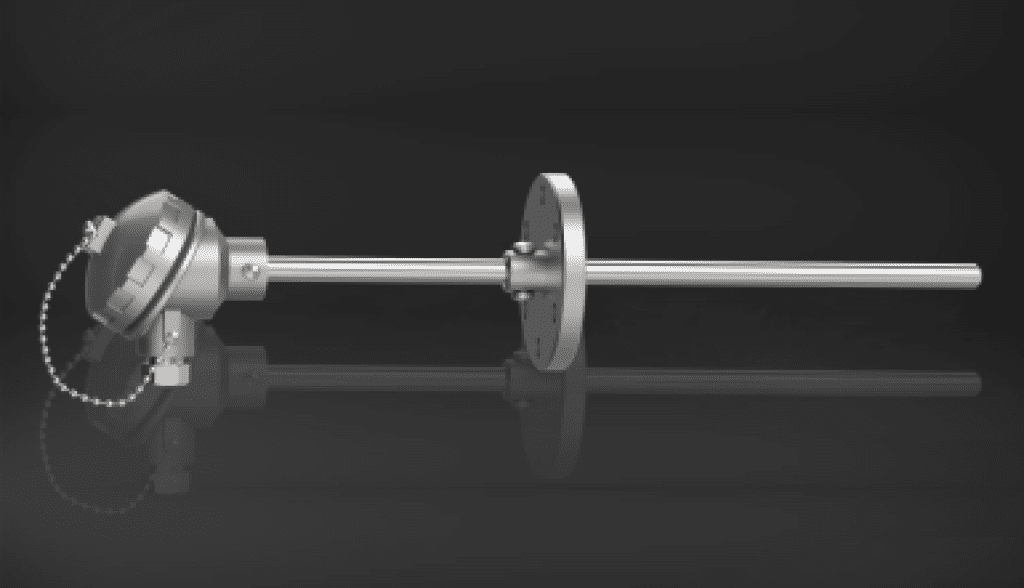

T-502
T-502 THERMOCOUPLE WITH THERMOWELL & ADJUSTABLE FLANGE
T-503

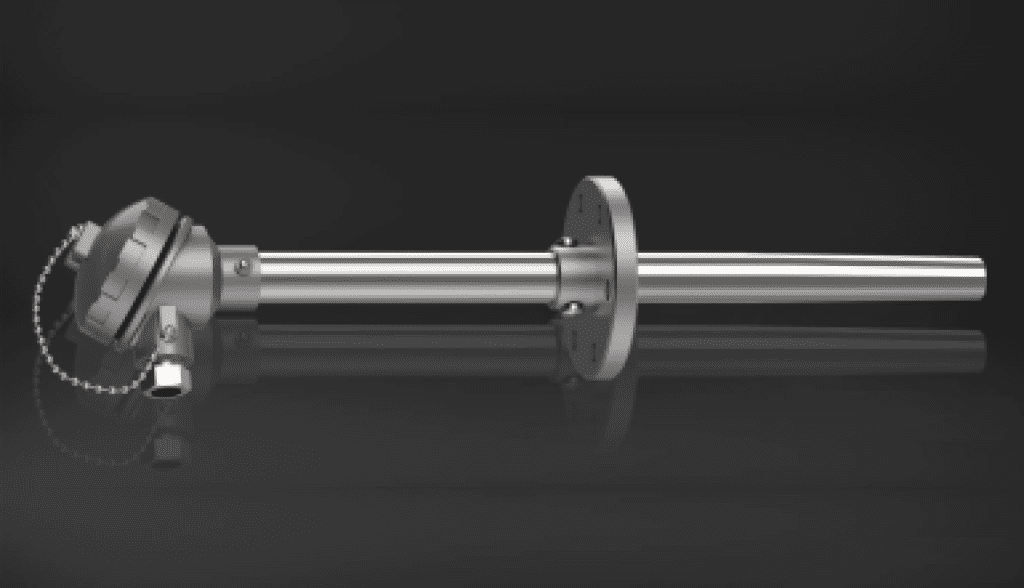

T-503 THERMOCOUPLE WITH TAPER THERMOWELL & ADJUSTABLE FLANGE
T-504

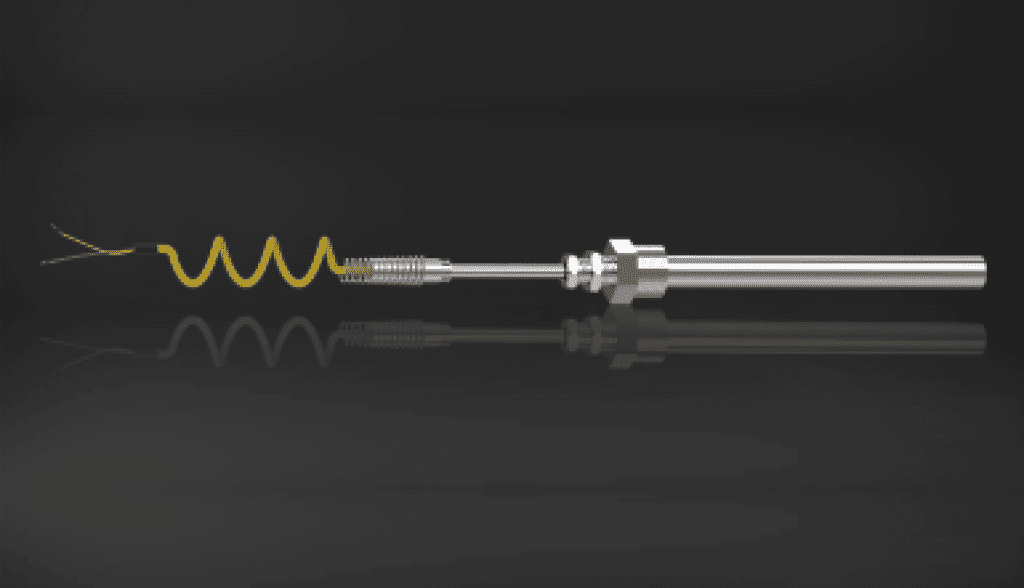

T-504 THERMOCOUPLE WITH STRAIGHT THERMOWELL, ADJUSTABLE COMPENSATION FITTING & CABLE

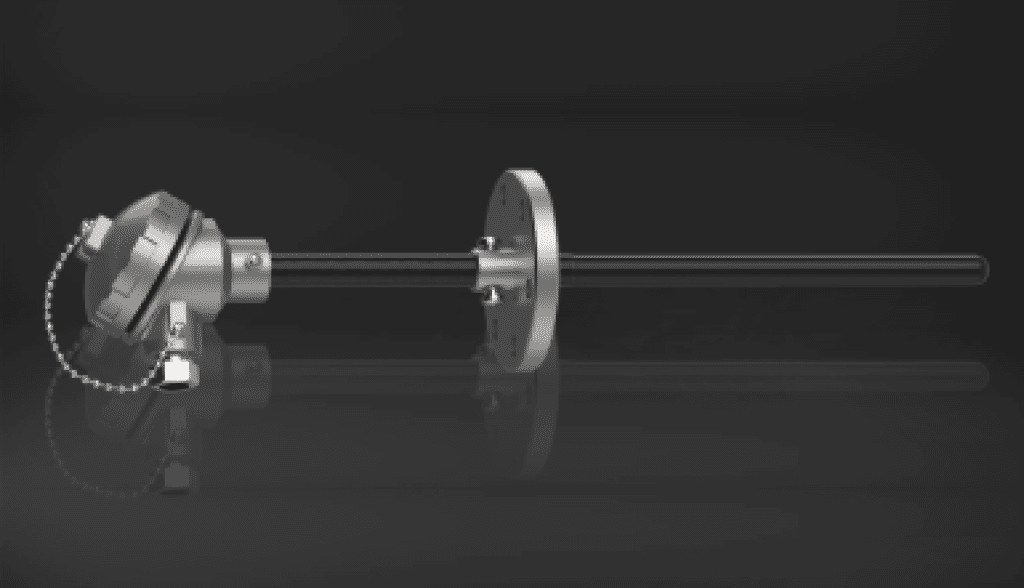

T-506
T–506 THERMOCOUPLE WITH THERMOWELL & COATING
T-651

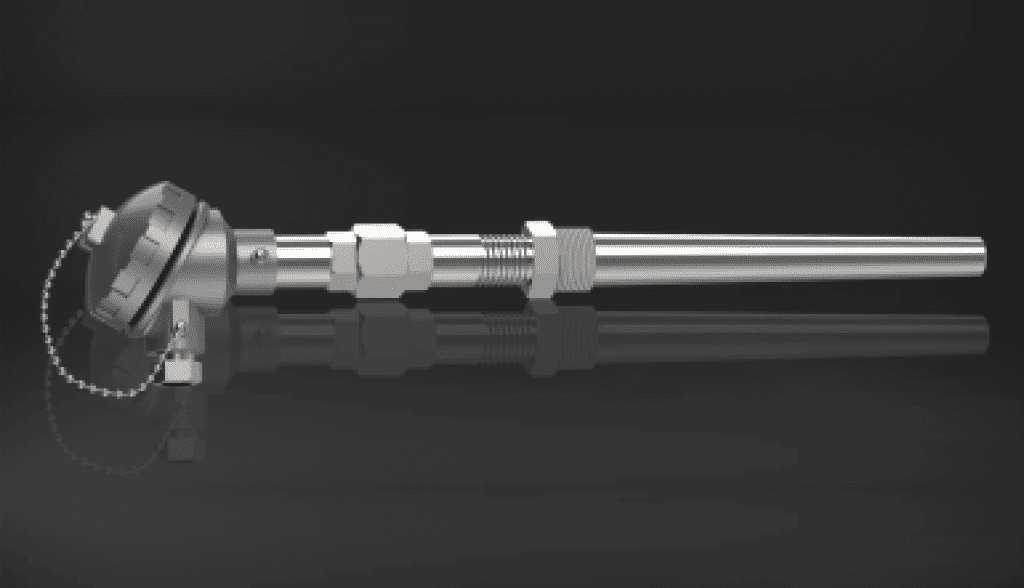

T–651 THERMOCOUPLE WITH N/U/N & TAPER THERMOWELL

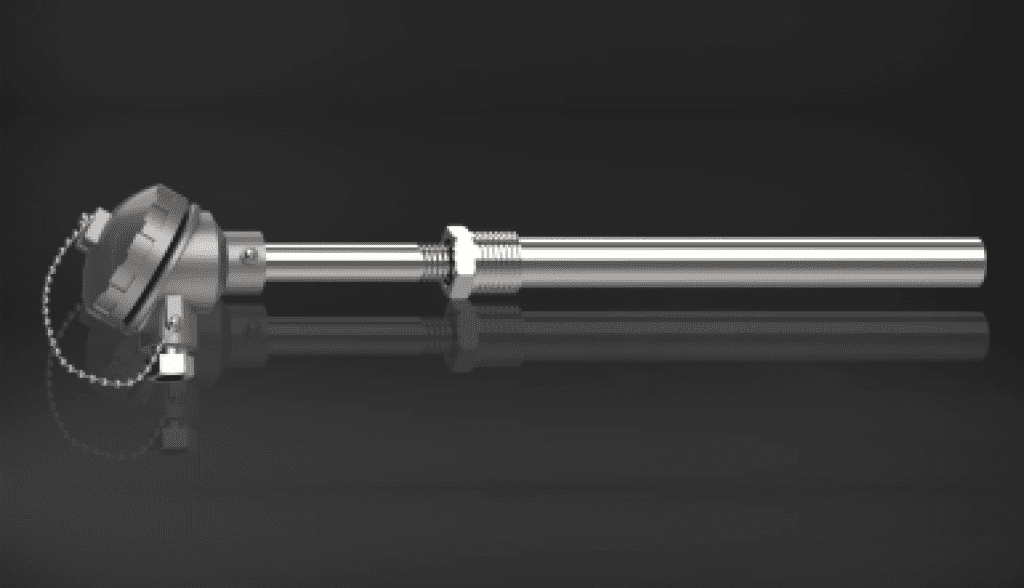

T-652
T–652 THERMOCOUPLE WITH NIPPLE & STRAIGHT THERMOWELL

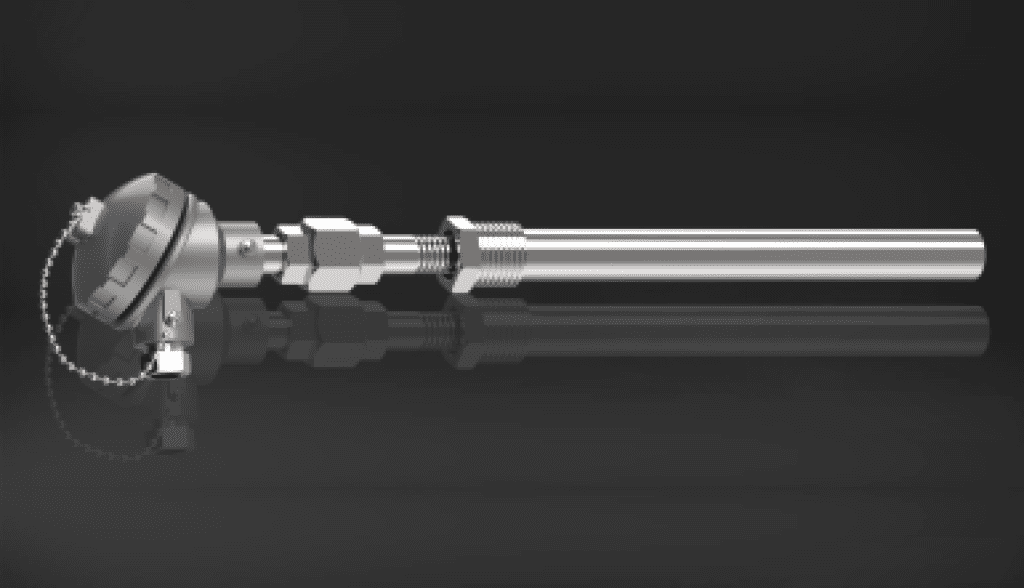

T-653
T–653 THERMOCOUPLE WITH N/U/N & STRAIGHT THERMOWELL

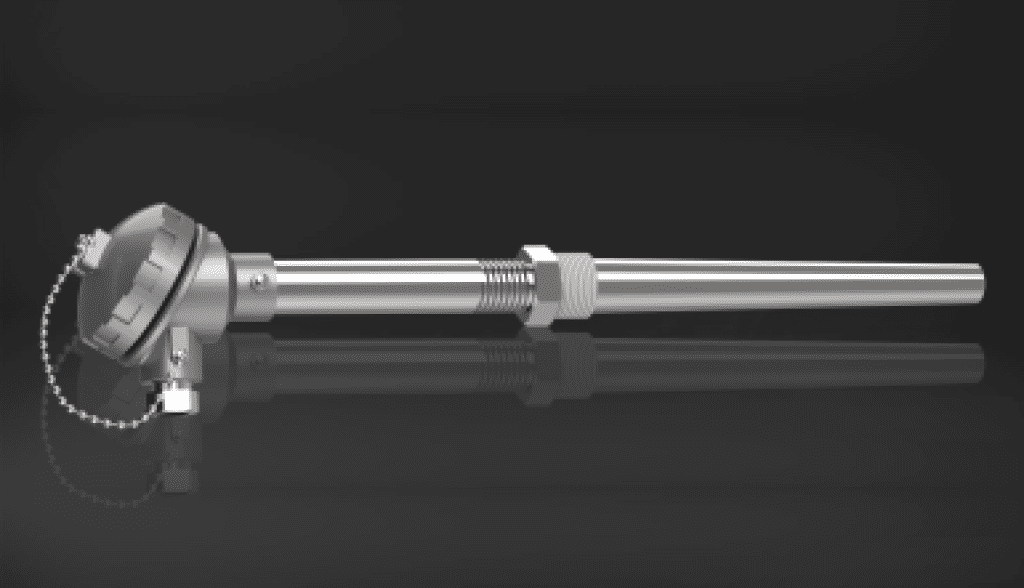

T-650
T-650 THERMOCOUPLE WITH NIPPLE & TAPER THERMOWELL

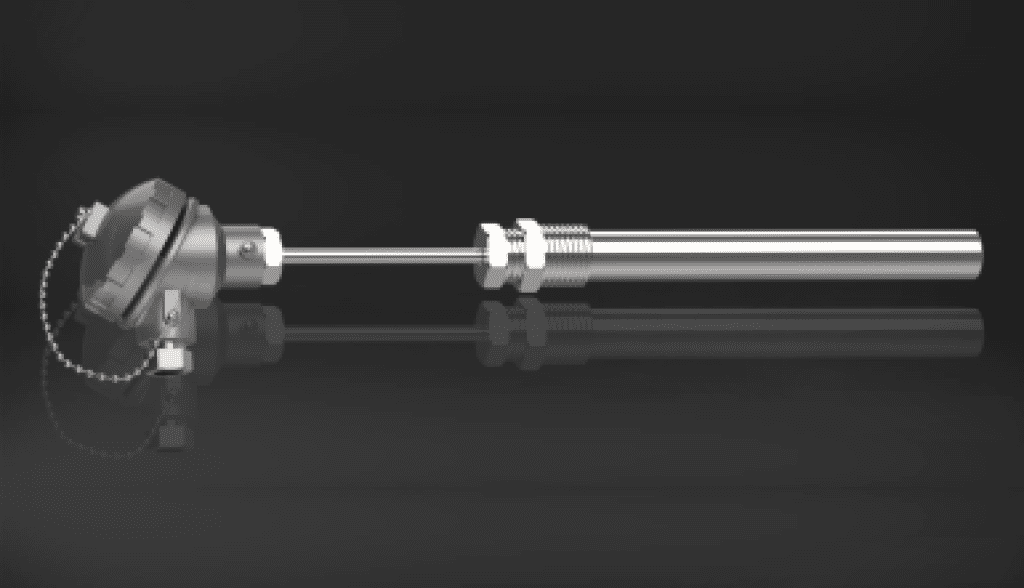

T-654
T-654 THERMOCOUPLE WITH STRAIGHT THERMOWELL, ADJUSTABLE COMPRESSION FITTING
T-655

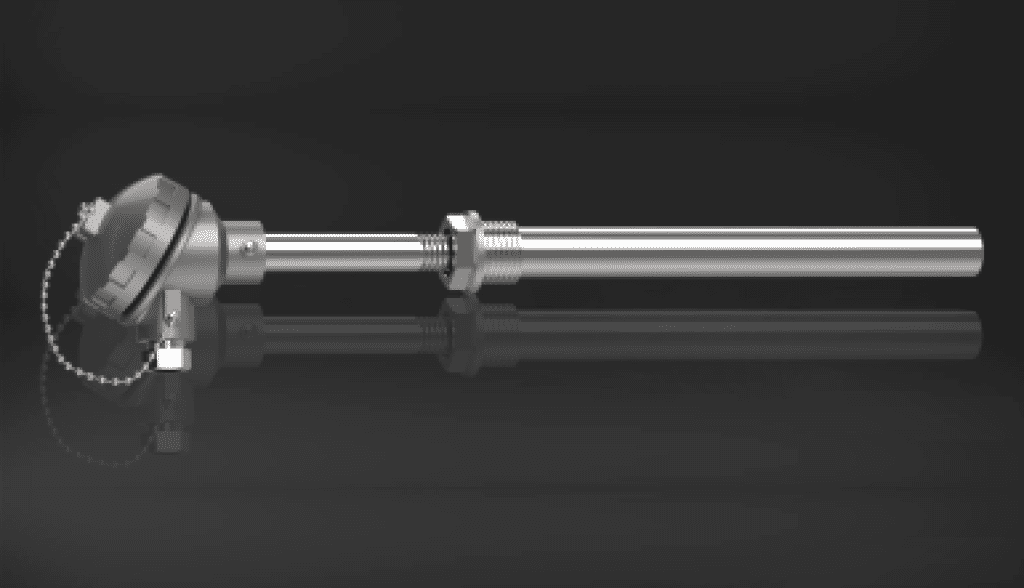

T-655 THERMOCOUPLE WITH NIPPLE & STRAIGHT THERMOWELL
T-656

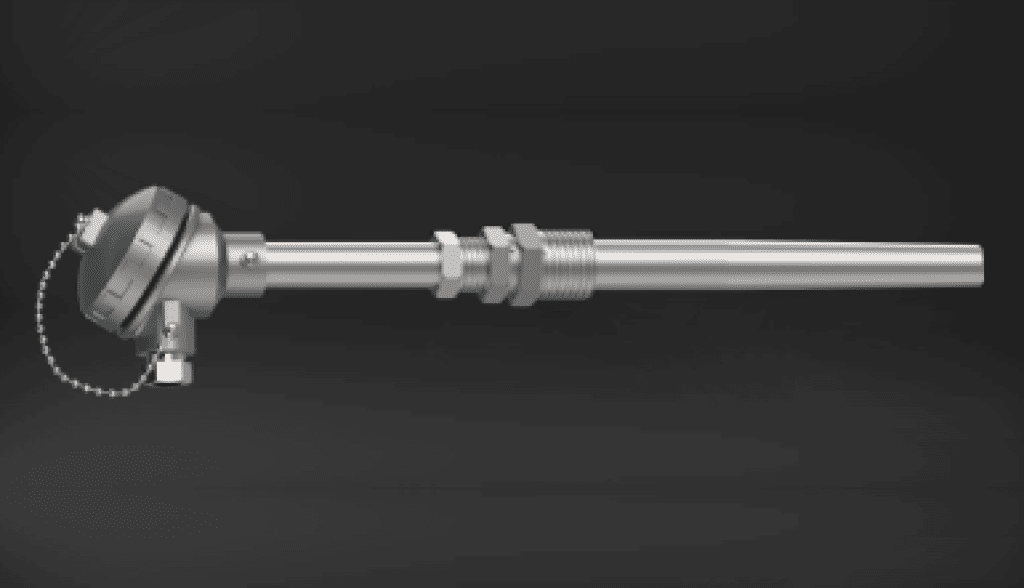

T-656 THERMOCOUPLE WITH TAPERED THERMOWELL & ADJUSTABLE COMPENSATION FITTING

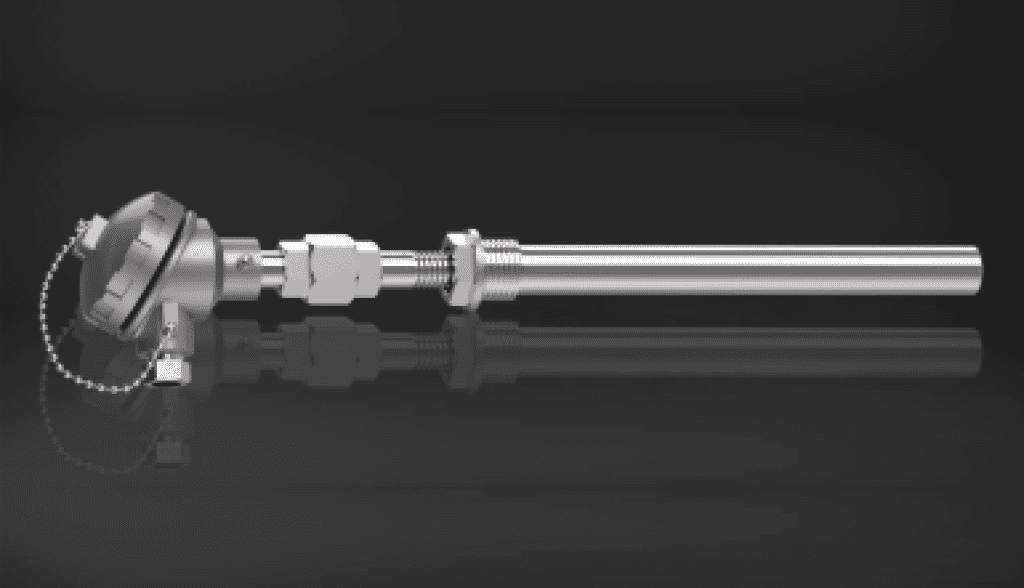

T-657
T-657 THERMOCOUPLE WITH SOLID SINTERED TUNGSTEN CARBIDE THERMOWELL
T-726

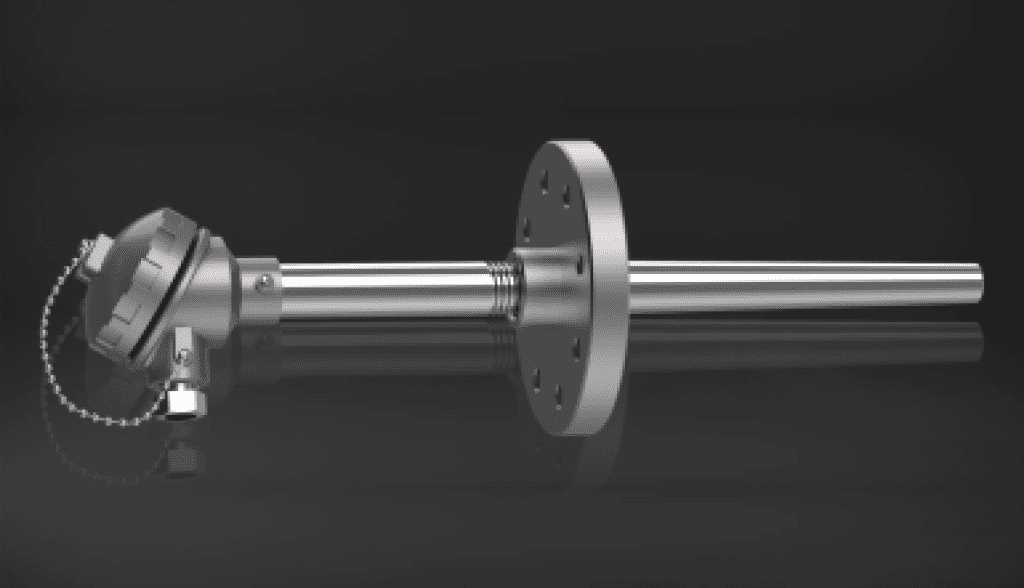

T-726 THERMOCOUPLE WITH NIPPLE & FLANGE THERMOWELL TAPER
T-727

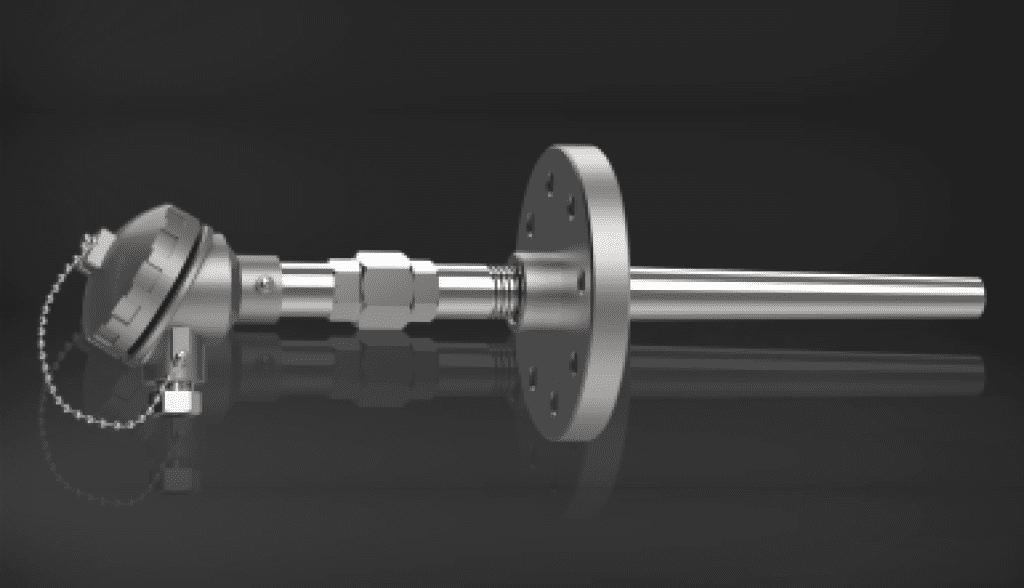

T-727 THERMOCOUPLE WITH N/U/N & FLANGE THERMOWELL TAPER

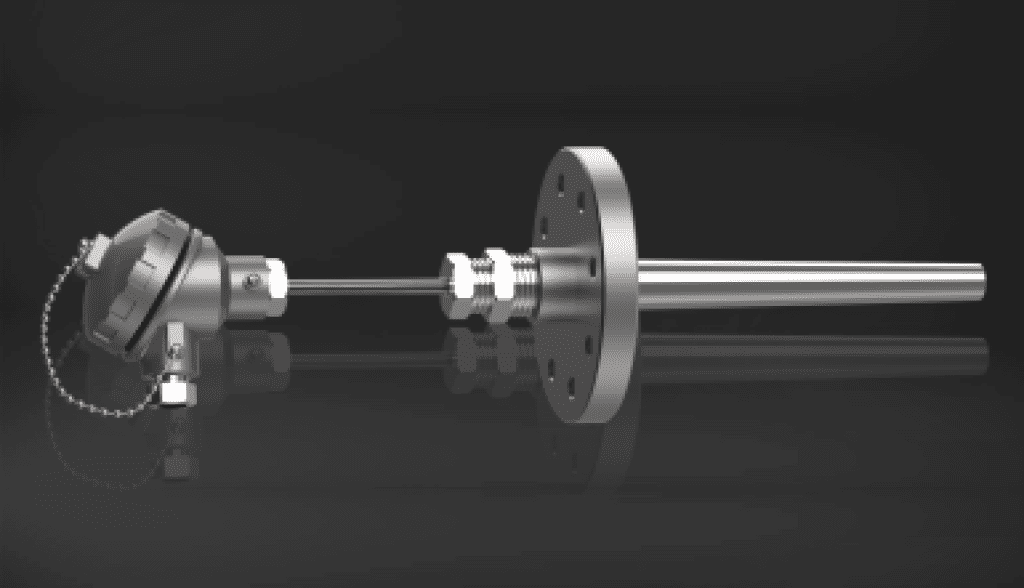

T-728
T-728 THERMOCOUPLE WITH FLANGE THERMOWELL TAPERED & ADJUSTABLE COMPENSATION FITTING

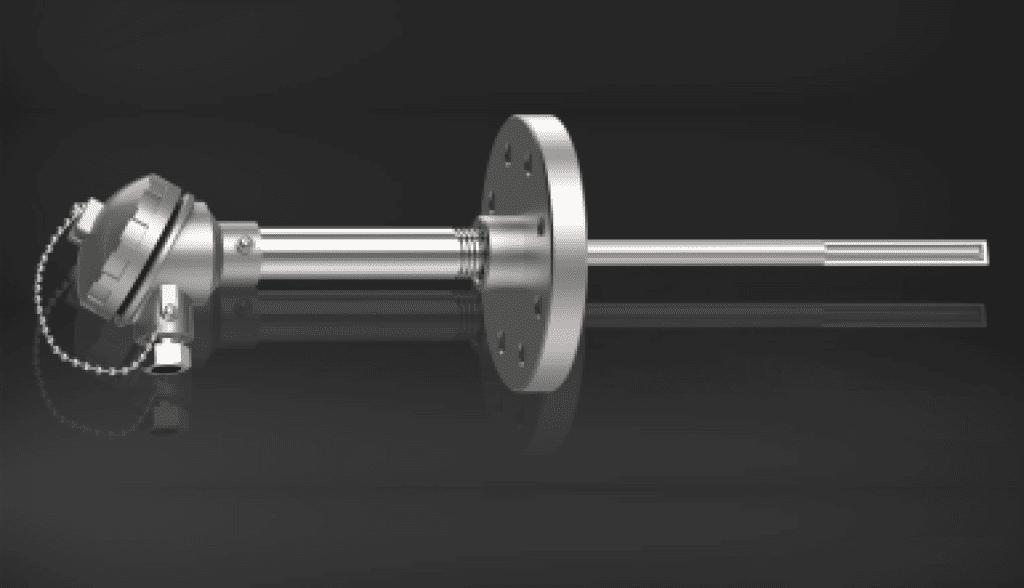

T-729
T-729 THERMOCOUPLE WITH NIPPLE & STRAIGHT THERMOWELL

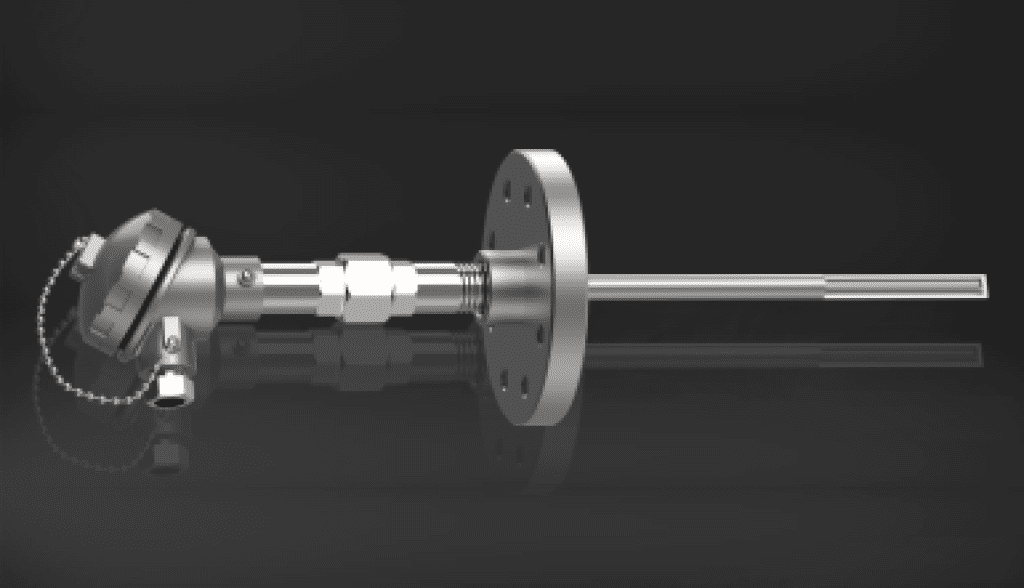

T-730
T-730 THERMOCOUPLE WITH N/U/N & STRAIGHT THERMOWELL

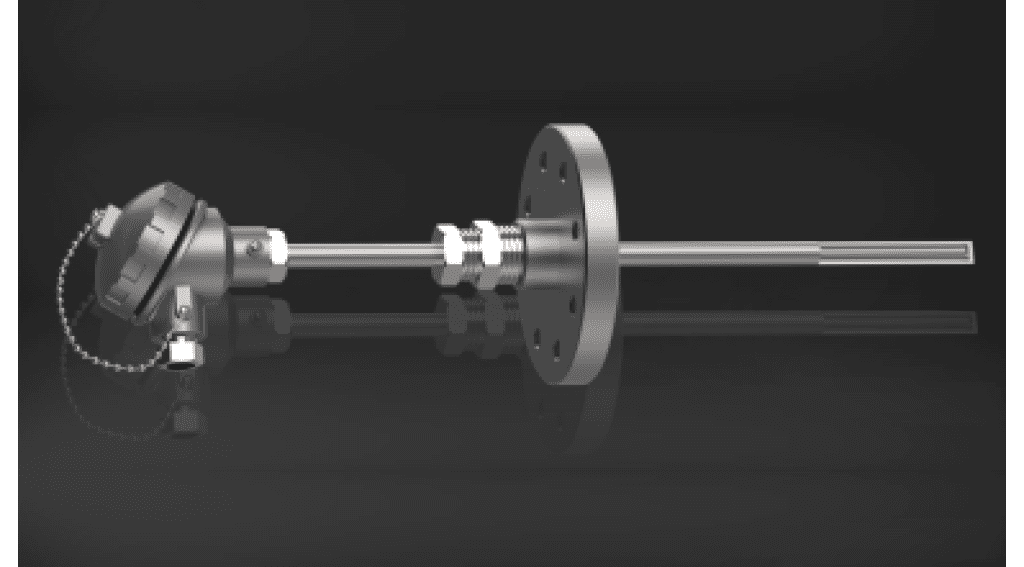

T-731
T-731 THERMOCOUPLE WITH STRAIGHT THERMOWELL & FITTING
T-732

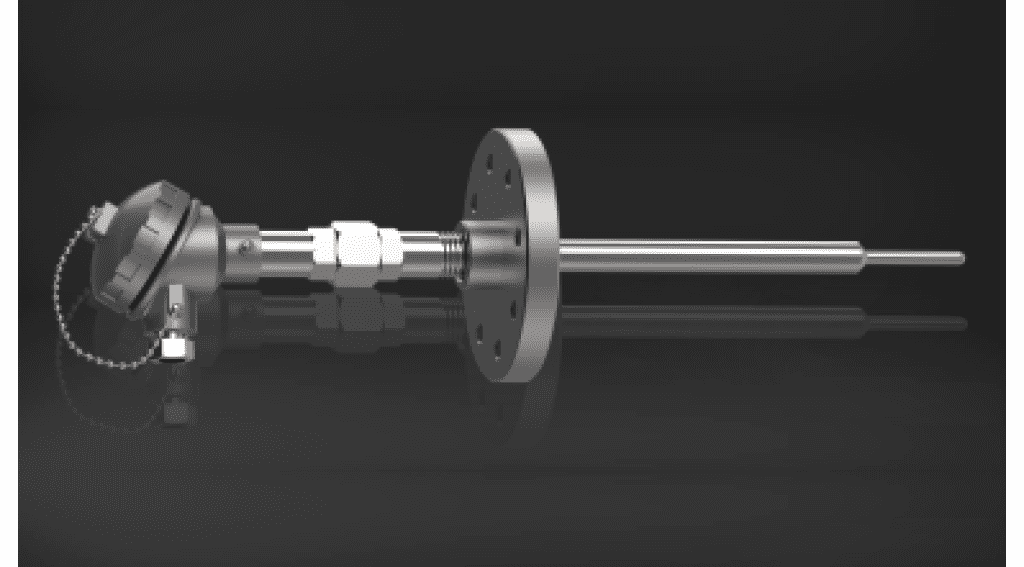

T-732 THERMOCOUPLE WITH N/U/N & STEPPED THERMOWELL

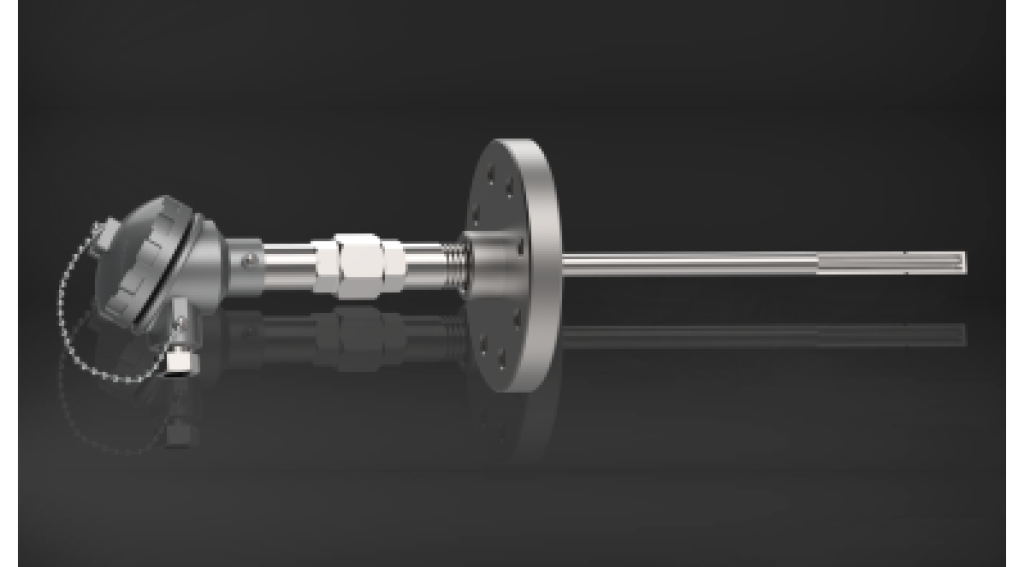

T-733
T-733 THERMOCOUPLE WITH BUILT UP FABRICATED THERMOWELL

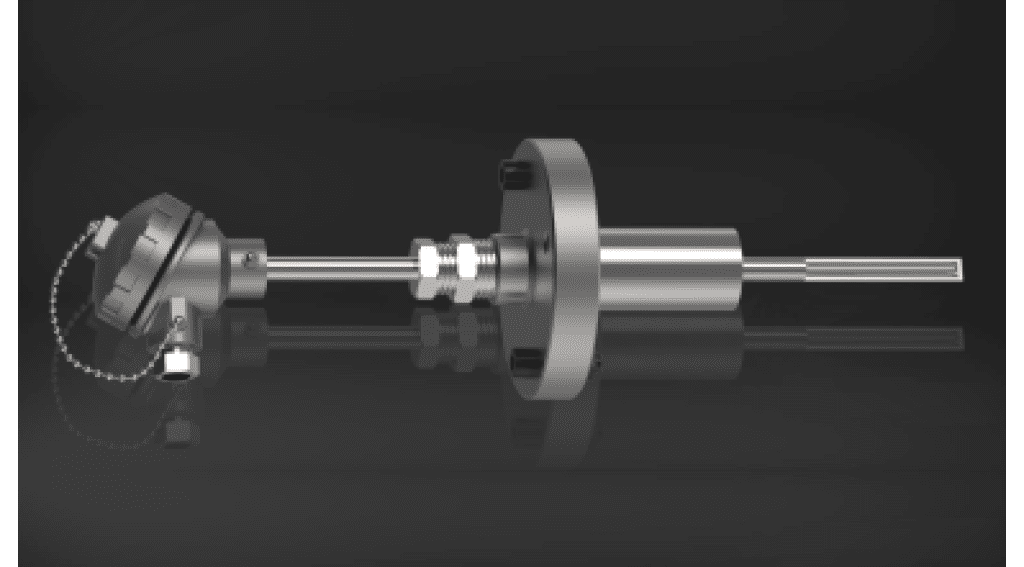

T-734
T–734 THERMOCOUPLE WITH THERMOWELL & FLANGE WITH PROTECTION TUBE
