Product Description

Product Overview
  • 1700℃ WTM series products are mainly for the daily application development of the laboratory, high-quality furnace materials, and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality Silicon molybdenum rod is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.
Features
  • The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy and saving above 50%.
  • High temperature control accuracy, small temperature compensation and temperature accuracy ± 1 °C.
  • The machine will send out an alarm signal to the over-temperature during the working process and automatically complete the protection action.
  • The heating element is made of high-quality silicon molybdenum rod, which can bear large load, stable and long service life; the silicon molybdenum rod is evenly arranged on both sides of the furnace, and the temperature field uniformity is good.
  • Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 30 segments.
  • When the instrument program is set, just press the run button and the next work will be completed automatically.
  • Patented temperature control design, fast heating rate, good temperature uniformity, can be raised to 1600℃ within 150 minutes, more than 3 times higher than the same specification electric furnace sintering efficiency in the industry, safe and efficient.
  • Electronic components are used Schneider products, with leakage protection, safe and reliable.
  • Optional large-screen paperless recorder or RS232 communication interface for real-time recording of temperature rise curves, with memory card for analysis and printing of experimental data.

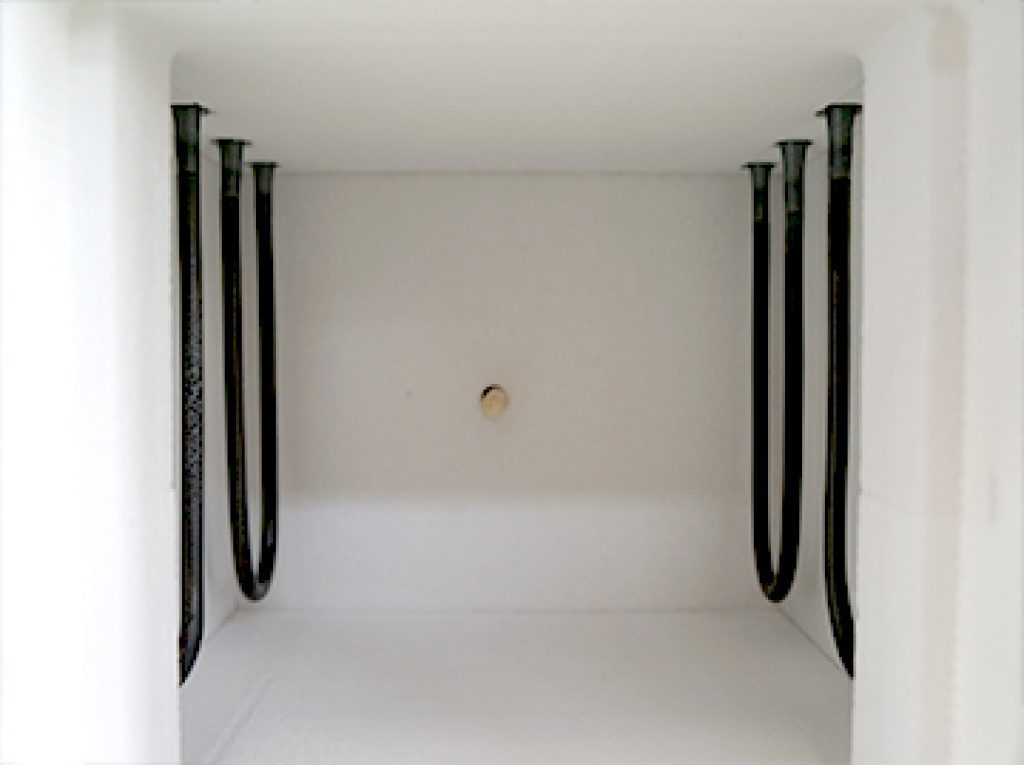

B Type Molybdenum Disilicide (MoSi2) Heater

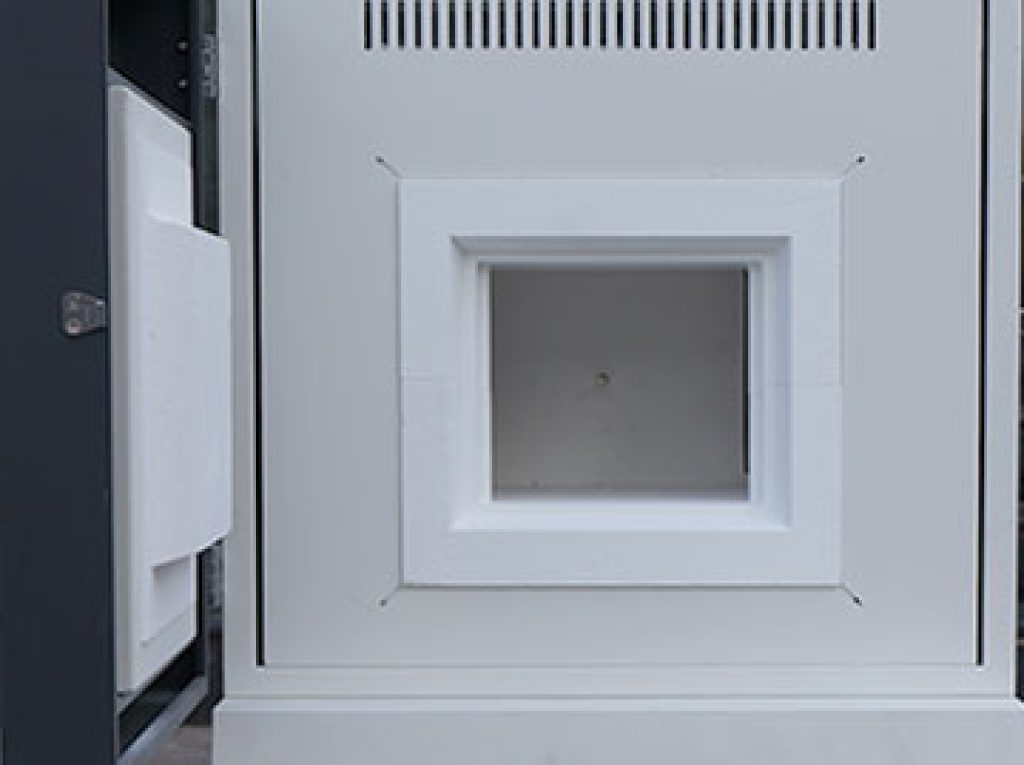

1800 Gray Polycrystal Alumina Ceramic Fiber Material
Technical Parameters
ModelWTM-3-14AWTM-8-14AWTM-12-14AWTM-18-14AWTM-27-14AWTM-36-14AOEM
Inner Dimension (WxDxH)mm100×120×100150×150×150200×200×200200×300×200250×320×250300×400×300Any size
Outer Dimension (WxDxH)mm383×432×660510×560×870600×620×920600×693×920610×730×9701040×840×1250
TypeBenchtop
Furnace StructureAlumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relative accessories
Max Temperature1400°C
Continue Temp.1600°C
Power Supply220V/2kW220V/4kW220V/5kW220V/6kW380V/7kW380V/13kW
Heating ElementHigh quality Molybdenum Disilicide ( MoSi2) heater
Chamber MaterialHigh temperature 1800 Grade polycrystal alumina ceramic fiber material
Temp Precision±1°C
ThermocoupleB type
Temp ControllerYUDIAN brand 518P Microprocessor PID controller as standard or any other brand as option
Electronic PartsSCHNEIDER (France ) main electronic parts /High quality electric transformer
Heating Rate≤15°C/min ( suggest 10°C/min for longer life using of furnace )
Safety ProtectionOverheat and thermocouple-break alarm
CertificationISO9001 /CE/ SGS
Furnace ShellHigh quality cold-rolled steel sheets CNC processing
InsulationHigh quality thermal insulation material to ensure a good uniformity
AccessoriesOne pair of high temperature gloves, One pair of crucible tongs, one catalog and operation manual
OptionalPaperless recorder, Stainless steel exhaust chimney, Quartz /Alumina crucible
