Product Description

Product Overview
  • 1700℃ WTQ series products are mainly for the daily application development of the laboratory, high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality Silicon molybdenum rod is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.
Features
  • The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy saving above 50%.
  • The heating element is made of high-quality Silicon molybdenum rod, which can bear large load, stable and long service life
  • The heating rate is fast, from room temperature to 1600 degrees, generally takes 150 minutes
  • High precision of temperature control, small temperature compensation and temperature accuracy ± 1 ° C.
  • Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 30 segments
  • Electronic components are used SCHNEIDER products, with leakage protection, safe and reliable
  • The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action
  • After the instrument program is set, just press the run button and the next work will be completed automatically
  • Optional air inlet can be used to purge and protect the inert gas such as air. It can also be installed with an exhaust chimney and connected with stainless steel bellows to discharge the toxic and harmful gases volatilized in the furnace to the designated location
Product Overview

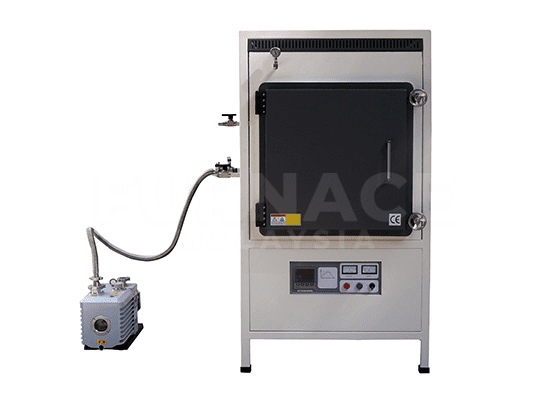

  • 1700°C Vacuum Atmosphere box furnace mainly provides high temperature heat treatment environment for industrial, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, graphite materials, lithium battery materials, crystalline materials and so on.
Technical Parameters
ModelWTM-3-14AWTM-8-14AWTM-12-14AWTM-18-14AWTM-27-14AWTM-36-14AOEM
Inner Dimension (WxDxH)mm100×120×100150×150×150200×200×200200×300×200250×320×250300×400×300Any size
TypeBenchtop
Furnace StructureAlumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relative accessories
Max Temperature1400°C
Continue Temp.1600°C
Power Supply220V/2kW220V/4kW220V/5kW220V/6kW380V/7kW380V/13kW
Heating ElementHigh quality Molybdenum Disilicide ( MoSi2) heater
Chamber MaterialHigh temperature 1800 Grade polycrystal alumina ceramic fiber material
Temp Precision±1°C
ThermocoupleB type
Temp ControllerYUDIAN brand 518P Microprocessor PID controller as standard or any other brand as option
Electronic PartsSCHNEIDER (France ) main electronic parts /High quality electric transformer
Heating Rate≤15°C/min ( suggest 10°C/min for longer life using of furnace )
Safety ProtectionOverheat and thermocouple-break alarm
CertificationISO9001 /CE/ SGS
Furnace ShellHigh quality cold-rolled steel sheets CNC processing
InsulationHigh quality thermal insulation material to ensure a good uniformity
AccessoriesOne pair of high temperature gloves, One pair of furnace hook, one catalog and operation manual
OptionalPaperless recorder, Stainless steel exhaust chimney, Quartz /Alumina crucible
