Product Description

Product Overview

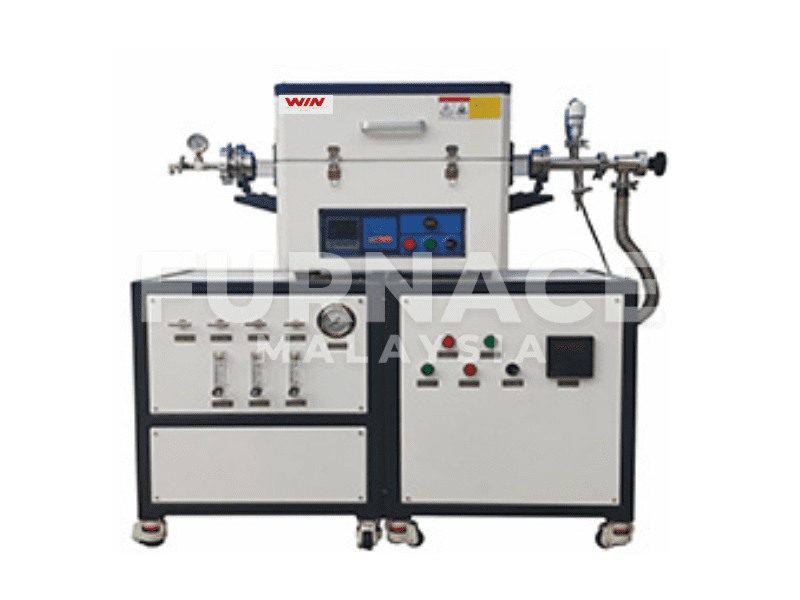

  • 1400℃ WTG Series products are mainly applied for the heat treatment of samples under vacuum or protective atmosphere, Quality SIC Rod is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements. The product uses the new-type ceramic fiber material as the furnace chamber material; the furnace tube material is corundum, and the tube is sealed by stainless steel flanges on its both ends, the furnace can be work under the vacuum atmosphere condition, there are air inlet and air outlet on the flange, also it can be filled in protective air, the precision needle-valve may adjust the air inlet flow rate.

Features
  • The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder and sinter without volatile in high temperature, Green, safety and comply with international standards
  • The heating element is made of Quality SIC Rod, which can bear large load, stable and long service life; the rods are evenly arranged on both sides of the furnace, and the temperature field uniformity is good
  • Patented temperature control design, fast heating rate, good temperature uniformity, can be raised to 1300℃ within 90 minutes, more than 3 times higher than the same specification electric furnace sintering efficiency in the industry, safe and efficient
  • High precision of temperature control, small temperature compensation and temperature accuracy ± 1 ° C.
  • Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 32 segments
  • The gas path system can be selected from one or three-way gas mass flow meters, and the gas mixing system can also be single-input and single-out. Accurate control of gas digital control, flow switch, and flow time can be automatically controlled by the touch screen to achieve unattended air control, accuracy: ±1% F.S, response time: ≤4sec
  • The vacuum system adopts a rotary vane vacuum unit. The vacuum measurement uses a digital composite vacuum machine or a Pirani vacuum gauge. The measuring instrument is integrated on the temperature control panel for easy operation.
  • The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action
  • When the instrument program is set, just press the run button and the next work will be completed automatically.
  • Optional large-screen paperless recorder or RS232 communication interface for real-time recording of temperature rise curves, with memory card for analysis and printing of experimental data.
Application
  • 1400°C mainly provides high temperature heat treatment environment for industrial, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, ceramic materials, nano materials, and semiconductor materials.
Technical Parameters
Model WTM-3-14A WTM-8-14A WTM-12-14A WTM-18-14A WTM-27-14A WTM-36-14A OEM
Inner Dimension (WxDxH)mm 100 Φ40mm Φ60mm Φ80mm Φ100mm Φ120mm Any size
Outer Dimension (WxDxH)mm 300 300 300 300 300 300
Type Benchtop
Furnace Structure Alumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell, Main Electric Parts and other relative accessories
Max Temperature 1400°C
Continue Temp. 1600°C
Power Supply 220V/2kW 220V/4kW 220V/5kW 220V/6kW 380V/7kW 380V/13kW
Heating Element High quality Molybdenum Disilicide ( MoSi2) heater
Chamber Material High temperature 1800 Grade polycrystal alumina ceramic fiber material
Temp Precision ±1°C
Thermocouple B type
Temp Controller YUDIAN brand 518P Microprocessor PID controller as standard or any other brand as option
Electronic Parts SCHNEIDER (France ) main electronic parts /High quality electric transformer
Heating Rate ≤15°C/min ( suggest 10°C/min for longer life using of furnace )
Safety Protection Overheat and thermocouple-break alarm
Certification ISO9001 /CE/ SGS
Furnace Shell High quality cold-rolled steel sheets CNC processing
Insulation High quality thermal insulation material to ensure a good uniformity
Accessories One pair of high temperature gloves, One pair of furnace hook, one catalog and operation manual
Optional Paperless recorder, Stainless steel exhaust chimney, Quartz /Alumina crucible
