Product Description

Product Overview

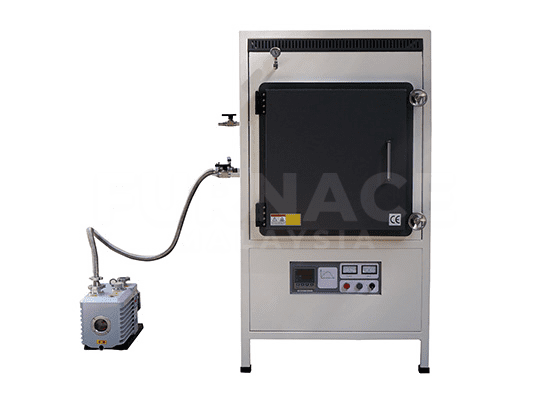

  • 1400℃ WTQ series products are mainly for the daily application development of the laboratory, high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality SIC Rod is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.
Features
  • Furnace insulation material adopts high-purity alumina ceramic fiber lining board, which has good insulation performance and energy saving.
  • Heavy double-layer structure with exhaust fan to ensure safe contact with the outer wall of the furnace.
  • Double furnace door: the inner furnace door blocks the fire, and the outer door is sealled with flange
  • High-temperature PTFE gaskets is installed on the outer furnace door to ensure the reliable sealing of the furnace .
  • The furnace body is provided with an air outlet for pumping air to obtain a vacuum environment.
  • Vacuum 20,000Pa
  • There are air inlets and outlets on the back of the furnace.
  • The heating furnace (1400C, 1700℃) is equipped with water cooling system inlet and outlet (excluding 1200C).
Application
  • 1400°C Atmosphere box furnace mainly provides high temperature heat treatment environment for industrial, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, graphite materials, lithium battery materials, crystalline materials and so on.
Technical Parameters
ModelWTM-3-14AWTM-8-14AWTM-12-14AWTM-18-14AWTM-27-14AWTM-36-14AOEM
Inner Dimension (WxDxH)mm100×120×100150×150×150200×200×200200×300×200250×320×250300×400×300Any size
Outer Dimension (WxDxH)mm383×432×660510×560×870600×620×920600×693×920610×730×9701040×840×1250
TypeBenchtop
Furnace StructureAlumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relative accessories
Max Temperature1400°C
Continue Temp.1600°C
Power Supply220V/2kW220V/4kW220V/5kW220V/6kW380V/7kW380V/13kW
Heating ElementHigh quality Molybdenum Disilicide ( MoSi2) heater
Chamber MaterialHigh temperature 1800 Grade polycrystal alumina ceramic fiber material
Temp Precision±1°C
ThermocoupleB type
Temp ControllerYUDIAN brand 518P Microprocessor PID controller as standard or any other brand as option
Electronic PartsSCHNEIDER (France ) main electronic parts /High quality electric transformer
Heating Rate≤15°C/min ( suggest 10°C/min for longer life using of furnace )
Safety ProtectionOverheat and thermocouple-break alarm
CertificationISO9001 /CE/ SGS
Furnace ShellHigh quality cold-rolled steel sheets CNC processing
InsulationHigh quality thermal insulation material to ensure a good uniformity
AccessoriesOne pair of high temperature gloves, One pair of furnace hook, one catalog and operation manual
OptionalPaperless recorder, Stainless steel exhaust chimney, Quartz /Alumina crucible
