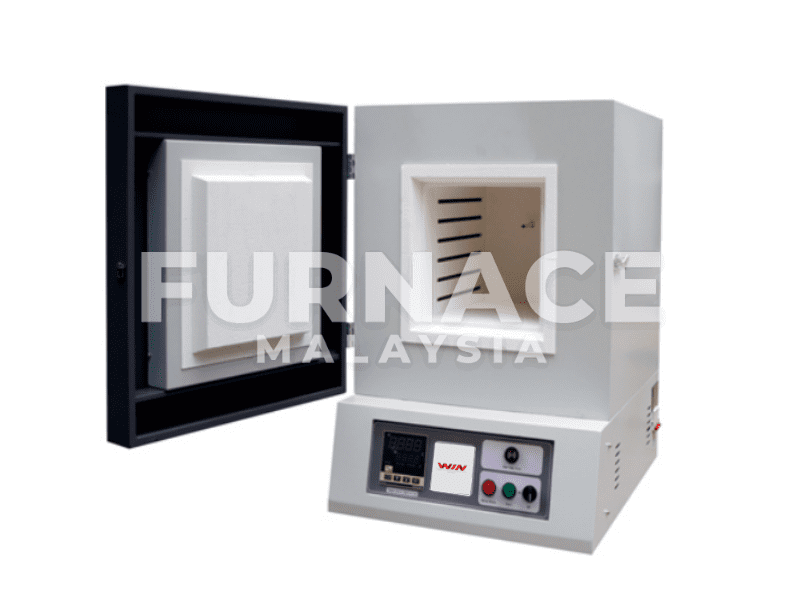

Product Description

Main Features
  • Integrated Structure with elegant design.
  • Chamber Materials: Vacuum forming ceramic fiber, which has the advantage of no powder drops off with high temperature, and saving energy more than 50%.
  • SHIMADEN (Japan) Microprocessor based self-tuning PIO control provides optimum thermal.
  • Long life type N thermocouple.
  • CE compliant.
  • Built-in RS485 port and USB adaptor as optional setting for computer control, it needs to add extra fees.

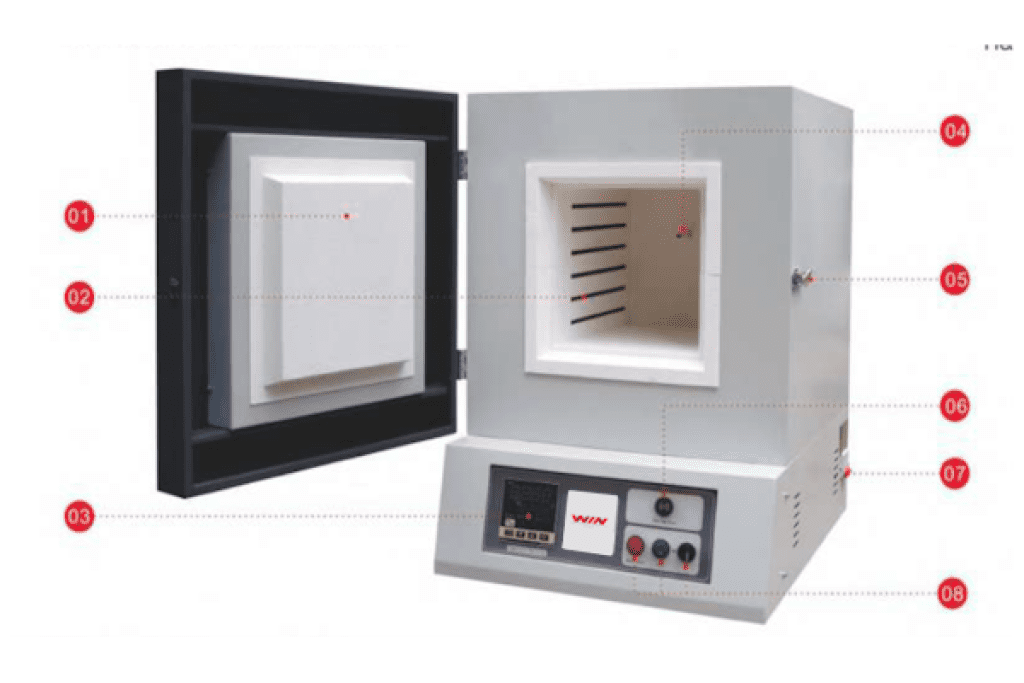

01 Ceramic Insulation Door
02 HRE Resistance Wire
03 Shimaden Temperature Controller
04 N Type Thermocouple
05 SS304 Safty Buckle
06 Sound -light Alarm
07 Schneider Air Switch
08 Operating Buttons
Technical Parameters
Model WTM-1-10A WTM-3-12A WTM-6-12A WTM-8-12A WTM-12-12A WTM-18-12A WTM-30-12A OEM
Inner Dimension (WxDxH)mm 100×100×100 150×150×150 180×230×150 200×300×120 200×300×200 250×300×250 300×500×200 Any size
Outer Dimension (WxDxH)mm 250×240×350 430×465×620 460×570×660 480×630×630 480×630×710 550×635×780 600×870×735
Type Benchtop
Furnace Structure Alumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relative accessories
Max Temperature 1000°C 1200°C
Continue Temp. 950°C 1100°C
Power Supply 220V/1.2kW 220V/2.5kW 220V/3kW 220V/3kW 380V/4kW 380V/6kW 380V/7.5kW
Heating Element High quality alloy resistance wire (HRE)
Chamber Material High temperature polycrystal alumina ceramic fiber plate
Temp Precision ±1°C
Thermocouple N type
Temp Controller SHI MADEN (Japan) brand intelligent microcomputer PID controller can program 4 groups 32 segments
Electronic Parts SCHNEIDER (France ) electronics brand
Heating Rate ≤25°C/min ( suggest 15-20°C/min for longer life using of furnace )
Safety Protection Overheat and thermocouple-break alarm
Certification ISO9001 /CE/ SGS
Furnace Shell High quality cold-rolled steel sheets CNC processing

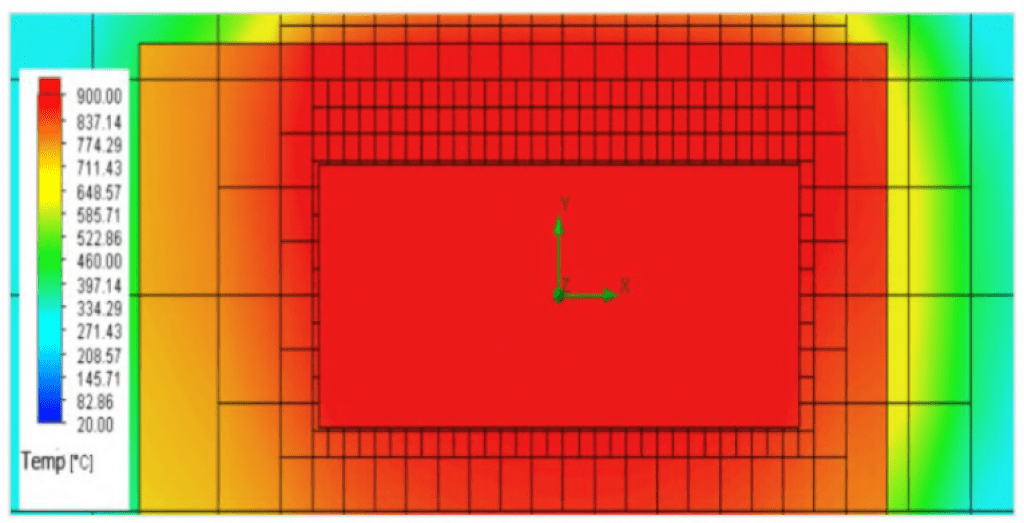

Insulation High quality thermal insulation material to ensure a good uniformity
Accessories One pair of high temperature gloves, One pair of crucible tongs, one catalog and operation manual
Optional Paperless recorder, Stainless steel exhaust chimney, Quartz /Alumina crucible

Chamber Muffle Furnace >>

The Overview of Chamber Muffle Furnace
WINTHERM chamber muffle furnace range has a maximum operating temperature of 1800°C and chamber capacities up to more than 2000 liters. It is mainly used in the Universities. Colleges ,Laboratories, Institutions of higher learning, Scientific research institutions. Factory enterprises and apply to new material fields such as metal material, ceramic material, nano material, semiconductor material applications etc.
  • Chamber furnaces generally has a much larger working chamber size and suitable for different size and type of samples for heating.
  • For special usage of experiment process, it is better to consider fully to check the function or whether need to choose other type of furnace.
  • When choosing a furnace, also need to consider whether the special parts for samples. Like powders in crucibles and other tools.
waves
HRE Resistance Wire
thermometer
N-Type Thermocouple
air-conditioning
PID Temperature Control

How to choose a Muffle Furnace ?

What is the operate temperature?
  • WINTHERM muffle furnace mainly with range of 1200°C, 1400°C, 1700°C and OEM 1800°C.
  • When real operating lower than 1200°C, we generally use high grade HRE spiral wire coils as heating element.
  • When real operating lower than 1400°C, we generally use high grade SIC ( Silicon Carbide Heaters ) heating element.
  • When real operating lower than 1700°C, we generally use high grade MoSi2 ( Molybdenum Disilicide Heaters ) heating element.
  • Continuous operating temp will be 100°C below the max temp design and right using will extend the furnace service life.
  • Furnaces are designed to operate at high temperatures. Operation below temperatures of approximately 600 °C will be less accurate and continuous use at low temperatures may reduce the element life of some furnaces, ie MoSi2 heated furnaces.
What is the chamber size required?
  • WINTHERM definite and real working chamber size with Width ( W ) , Depth (D) and Height (H) and you will see the specification with W*D*H (mm).
  • WINTHERM has wide range of working chamber size for chamber furnaces.
What is the temp controller?
  • WINTHERM standard furnaces controlled by SHIMADEN (Japan ) 32 segments digital PIO (proportional, integral and derivative) controller with accurate control.
  • Multi-segments and/or multi-program controllers are available as an option on most models or any other brand models as customer want to have.
  • The Furnace built-in RS485 digital communications port and USB adaptor as optional setting , allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
What is electric parts used?
  • WINTHERM furnace all use international parts to keep safety and quality.
  • Main Electric parts use France SCHNEIDER electronics parts.
  • Main Control use USA Crydom Solid Relay or German SEMIKRON SCR control.
What is your OEM furnace service?
  • WINTHERM has professional designers team and can design different furnaces according to customer technical request.
  • WINTHERM will confirm the OEM design with customers before final manufacturing.
