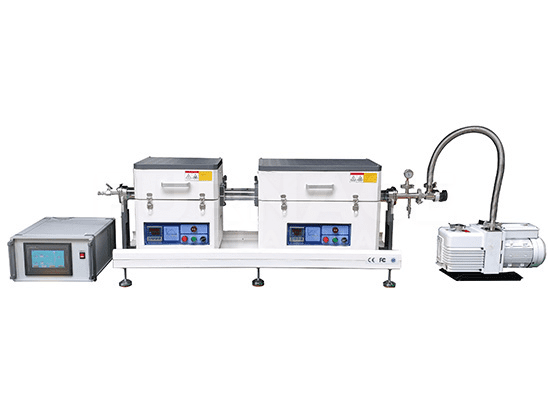

1200℃ Two Heating Zone Split Tube Furnace

Coverage Area: Johor, Melaka, Negeri Sembilan, Pahang, Selangor, Terengganu, Kelantan, Perak, Pulau Pinang, Kedah, Perlis, Sabah, Sarawak, Malaysia

Product Overview
1200℃ WTG Series products are mainly applied for the heat treatment of samples under vacuum or protective atmosphere, high quality chamber materials and stable temperature control system ensure the reliability of experimental data. The product uses the new-type ceramic fiber material as the furnace chamber material; the furnace tube material is fine, and the tube is sealed by stainless steel flanges on its both ends, the furnace can be work under the vacuum, there are air inlet and air outlet on the flange, also it can be filled in protective air, the precision needle-valve may adjust the air inlet flow rate.

Product Overview

1200℃ WTG Series products are mainly applied for the heat treatment of samples under vacuum or protective atmosphere, high quality chamber materials and stable temperature control system ensure the reliability of experimental data. The product uses the new-type ceramic fiber material as the furnace chamber material; the furnace tube material is fine, and the tube is sealed by stainless steel flanges on its both ends, the furnace can be work under the vacuum, there are air inlet and air outlet on the flange, also it can be filled in protective air, the precision needle-valve may adjust the air inlet flow rate.

Features
The furnace tube adopts quartz tube as carrier and the stainless steel flanges on its both ends are simple design, reasonable, easy to disassemble and convenient for entering and leaving sintered samples Furnace material is high-purity alumina ceramic fiber materials, new assembly structure, no transformation in long term high temperature, sturdy and durable Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 32 segments The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action. The heating element is made of high-quality alloy wire, which can bear large load, stable and long service life When the instrument program is set, just press the run button and the next work will be completed automatically The heating rate is fast, from room temperature to 1100 degrees, generally takes 60 minutes Electronic components are used SCHNEIDER(France)electronics brand products, with leakage protection, safe and reliable It can be installed with a gas mass flowmeter, digital precise control of the gas.

Features

The furnace tube adopts quartz tube as carrier and the stainless steel flanges on its both ends are simple design, reasonable, easy to disassemble and convenient for entering and leaving sintered samples
Furnace material is high-purity alumina ceramic fiber materials, new assembly structure, no transformation in long term high temperature, sturdy and durable
Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 32 segments
The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action.
The heating element is made of high-quality alloy wire, which can bear large load, stable and long service life
When the instrument program is set, just press the run button and the next work will be completed automatically
The heating rate is fast, from room temperature to 1100 degrees, generally takes 60 minutes
Electronic components are used SCHNEIDER(France)electronics brand products, with leakage protection, safe and reliable
It can be installed with a gas mass flowmeter, digital precise control of the gas.

Application
1200°C split tube furnace mainly provides high temperature heat treatment environment for industrial, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, ceramic materials, nano materials, and semiconductor materials.

Technical Parameters

Model	WTM-3-14A	WTM-8-14A	WTM-12-14A	WTM-18-14A	WTM-27-14A	WTM-36-14A	OEM
Inner Dimension (WxDxH)mm	100×120×100	150×150×150	200×200×200	200×300×200	250×320×250	300×400×300	Any size
Outer Dimension (WxDxH)mm	383×432×660	510×560×870	600×620×920	600×693×920	610×730×970	1040×840×1250	–
Type	Benchtop
Furnace Structure	Alumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relative accessories
Max Temperature	1400°C
Continue Temp.	1600°C
Power Supply	220V/2kW	220V/4kW	220V/5kW	220V/6kW	380V/7kW	380V/13kW	–
Heating Element	High quality Molybdenum Disilicide ( MoSi2) heater
Chamber Material	High temperature 1800 Grade polycrystal alumina ceramic fiber material
Temp Precision	±1°C
Thermocouple	B type
Temp Controller	YUDIAN brand 518P Microprocessor PID controller as standard or any other brand as option
Electronic Parts	SCHNEIDER (France ) main electronic parts /High quality electric transformer
Heating Rate	≤15°C/min ( suggest 10°C/min for longer life using of furnace )
Safety Protection	Overheat and thermocouple-break alarm
Certification	ISO9001 /CE/ SGS
Furnace Shell	High quality cold-rolled steel sheets CNC processing
Insulation	High quality thermal insulation material to ensure a good uniformity
Accessories	One pair of high temperature gloves, One pair of crucible tongs, one catalog and operation manual
Optional	Paperless recorder, Stainless steel exhaust chimney, Quartz /Alumina crucible
