Product Description

Product Overview
  • 1200℃ WTM series products are mainly for the daily application development of the laboratory, high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality Silicon molybdenum rod is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.
  • Max Temperature: 1200℃ Working Temperature: 1100℃ Chamber Size: 150x150x150mm Tube Diameter: φ50mm Heating Element: Alloy Resistance Wires
Features
  • The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy saving above 50%.
  • The heating element is made of high-quality silicon molybdenum rod, which can bear large load, stable and long service life; the silicon molybdenum rod is evenly arranged on both sides of the furnace, and the temperature field uniformity is good.
  • High-temperature control accuracy, small temperature compensation, and temperature accuracy ± 1 °C.
  • Using an intelligent PID temperature control instrument, with a program function, can set the temperature rise curve, and can be programmed in 30 segments.
  • Electronic components are used in Schneider products, with leakage protection, safe and reliability.
  • The machine will send out an alarm signal to the over-temperature during the working process and automatically complete the protection action.
  • When the instrument program is set, just press the run button and the next work will be completed automatically.
  • Optional large-screen paperless recorder or RS232 communication interface for real-time recording of temperature rise curves, with memory card for analysis and printing of experimental data.
Application

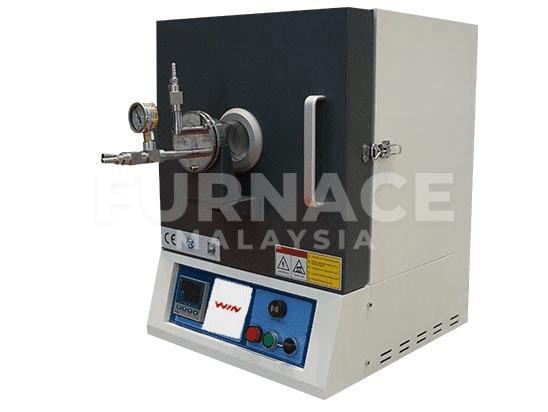

  • 1200°C tube muffle furnace (box type resistance furnace) mainly provides high temperature heat treatment environment for industrial colleges, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, ceramic materials, nano materials, and semiconductor materials.
Technical Parameters
Model WTM-3-14A WTM-8-14A WTM-12-14A WTM-18-14A WTM-27-14A WTM-36-14A OEM
Inner Dimension (WxDxH)mm 100×120×100 150×150×150 200×200×200 200×300×200 250×320×250 300×400×300 Any size
Outer Dimension (WxDxH)mm 383×432×660 510×560×870 600×620×920 600×693×920 610×730×970 1040×840×1250
Type Benchtop
Furnace Structure Alumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relative accessories
Max Temperature 1400°C
Continue Temp. 1600°C
Outer Dimension (WxDxH)mm 220V/2kW 220V/4kW 220V/5kW 220V/6kW 380V/7kW 380V/13kW
Heating Element High quality Molybdenum Disilicide ( MoSi2) heater
Chamber Material High temperature 1800 Grade polycrystal alumina ceramic fiber material
Temp Precision ±1°C
Thermocouple B type
Temp Controller YUDIAN brand 518P Microprocessor PID controller as standard or any other brand as option
Electronic Parts SCHNEIDER (France ) main electronic parts /High quality electric transformer
Heating Rate ≤15°C/min ( suggest 10°C/min for longer life using of furnace )
Safety Protection Overheat and thermocouple-break alarm
Certification ISO9001 /CE/ SGS
Furnace Shell High quality cold-rolled steel sheets CNC processing
Insulation High quality thermal insulation material to ensure a good uniformity
Accessories One pair of high temperature gloves, One pair of crucible tongs, one catalog and operation manual
Optional Paperless recorder, Stainless steel exhaust chimney, Quartz /Alumina crucible
