Product Description

Product Overview

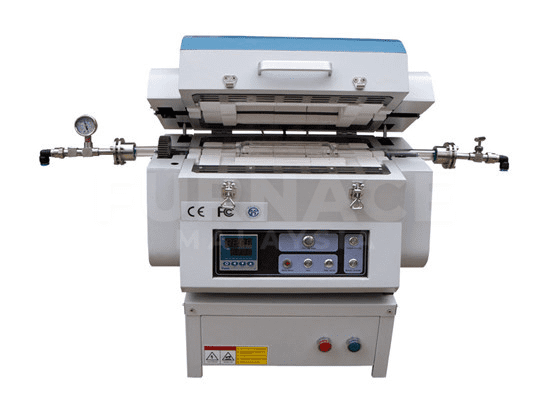

  • This product is a single-zone rotary lift-open tube furnace with a maximum operating temperature of 1200 °C. Applied to the physical analysis of laboratory powder materials, elemental determination, it can be work under vacuum or protective atmosphere. The furnace tube is made of high-purity quartz tube. size is φ50*300mm. It contains stirring paddles to make the workpieces evenly heated. The diameter of the non-temperature zone tube is 25mm, and the stainless steel flanges on both sides of the furnace tube are sealed. Equipped with PTFE-O type gasket for better sealing performance, with air inlet and outlet.
Features
  • The furnace tube adopts quartz tube as carrier and the stainless steel flanges on its both ends are simple design, reasonable, easy to disassemble and convenient for entering and leaving sintered samples
  • Furnace material is high-purity alumina ceramic fiber materials, new assembly structure, no transformation in long term high temperature, sturdy and durable
  • Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 32 segments
  • The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action.
  • The heating element is made of high-quality alloy wire, which can bear large load, stable and long service life
  • When the instrument program is set, just press the run button and the next work will be completed automatically
  • The heating rate is fast, from room temperature to 1100 degrees, generally takes 60 minutes
  • An electric lifting device equips at the bottom of the furnace to tilt the furnace body range from 0°~ 30°, providing heat treatment environment under vacuum atmosphere, the vacuum degree is as low as 0.001Pa, and the furnace tube speed is adjustable.
  • It can be installed with a gas mass flowmeter, digital precise control of the gas.
Application
  • 1200°C Rotary tilting tube furnace mainly provides high temperature heat treatment environment for industrial, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, ceramic materials, nano materials, and semiconductor materials.
Technical Parameters
ModelWTM-3-14AWTM-8-14AWTM-12-14AWTM-18-14AWTM-27-14AWTM-36-14AOEM
Inner Dimension (WxDxH)mm100×120×100150×150×150200×200×200200×300×200250×320×250300×400×300Any size
Outer Dimension (WxDxH)mm383×432×660510×560×870600×620×920600×693×920610×730×9701040×840×1250
TypeBenchtop
Furnace StructureAlumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relative accessories
Max Temperature1400°C
Continue Temp.1600°C
Power Supply220V/2kW220V/4kW220V/5kW220V/6kW380V/7kW380V/13kW
Heating ElementHigh quality Molybdenum Disilicide ( MoSi2) heater
Chamber MaterialHigh temperature 1800 Grade polycrystal alumina ceramic fiber material
Temp Precision±1°C
ThermocoupleB type
Temp ControllerYUDIAN brand 518P Microprocessor PID controller as standard or any other brand as option
Electronic PartsSCHNEIDER (France ) main electronic parts /High quality electric transformer
Heating Rate≤15°C/min ( suggest 10°C/min for longer life using of furnace )
Safety ProtectionOverheat and thermocouple-break alarm
CertificationISO9001 /CE/ SGS
Furnace ShellHigh quality cold-rolled steel sheets CNC processing
InsulationHigh quality thermal insulation material to ensure a good uniformity
AccessoriesOne pair of high temperature gloves, One pair of crucible tongs, one catalog and operation manual
OptionalPaperless recorder, Stainless steel exhaust chimney, Quartz /Alumina crucible
