Product Description

Product Overview
  • 1200℃ WTGD Series products are mainly applied for the heat treatment of samples under vacuum or protective atmosphere, high quality chamber materials and stable temperature control system ensure the reliability of experimental data. The product uses the new-type ceramic fiber material as the furnace chamber material; the furnace tube material is fine, and the tube is sealed by stainless steel flanges on its both ends, the furnace can be work under the vacuum, there are air inlet and air outlet on the flange, also it can be filled in protective air, the precision needle-valve may adjust the air inlet flow rate.

Features
  • The furnace tube adopts quartz tube as carrier and the stainless steel flanges on its both ends are simple design, reasonable, easy to disassemble and convenient for entering and leaving sintered samples
  • Furnace material is high-purity alumina ceramic fiber materials, new assembly structure, no transformation in long term high temperature, sturdy and durable
  • Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 32 segments
  • The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action.
  • The heating element is made of high-quality alloy wire, which can bear large load, stable and long service life
  • When the instrument program is set, just press the run button and the next work will be completed automatically
  • The heating rate is fast, from room temperature to 1100 degrees, generally takes 60 minutes
  • Electronic components are used Schneider brand products, with leakage protection, safe and reliable
  • It can be installed with a gas mass flowmeter, digital precise control of the gas.

Application

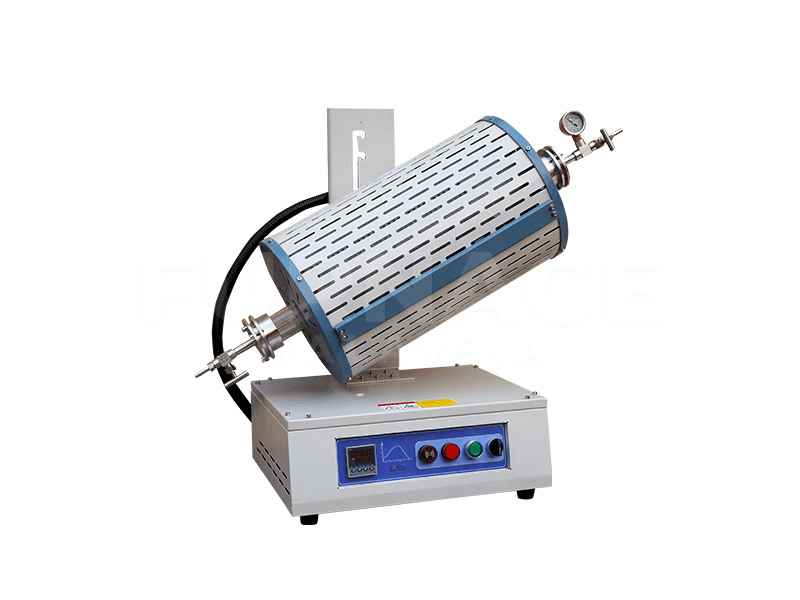

  • 1200°C Rotary tilting tube furnace mainly provides high temperature heat treatment environment for industrial, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, ceramic materials, nano materials, and semiconductor materials.
Technical Parameters
Model WTM-3-14A WTM-8-14A WTM-12-14A WTM-18-14A WTM-27-14A WTM-36-14A OEM
Inner Dimension (WxDxH)mm 100×120×100 150×150×150 200×200×200 200×300×200 250×320×250 300×400×300 Any size
Outer Dimension (WxDxH)mm 383×432×660 510×560×870 600×620×920 600×693×920 610×730×970 1040×840×1250
Type Benchtop
Furnace Structure Alumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relative accessories
Max Temperature 1400°C
Continue Temp. 1600°C
Power Supply 220V/2kW 220V/4kW 220V/5kW 220V/6kW 380V/7kW 380V/13kW
Heating Element High quality Molybdenum Disilicide ( MoSi2) heater
Chamber Material High temperature 1800 Grade polycrystal alumina ceramic fiber material
Temp Precision ±1°C
Thermocouple B type
Temp Controller YUDIAN brand 518P Microprocessor PID controller as standard or any other brand as option
Electronic Parts SCHNEIDER (France ) main electronic parts /High quality electric transformer
Heating Rate ≤15°C/min ( suggest 10°C/min for longer life using of furnace )
Safety Protection Overheat and thermocouple-break alarm
Certification ISO9001 /CE/ SGS
Furnace Shell High quality cold-rolled steel sheets CNC processing
Insulation High quality thermal insulation material to ensure a good uniformity
Accessories One pair of high temperature gloves, One pair of crucible tongs, one catalog and operation manual
Optional Paperless recorder, Stainless steel exhaust chimney, Quartz /Alumina crucible
