Product Description

Product Overview
  • 1200℃ WTT series products are mainly used for large materials sintering or small production application development; the furnace adopts high-quality chamber material and large chamber construction technology, and the high-quality alloy resistance wire is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.

Features
  • The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy saving above 50%.
  • The heating element is made of high-quality alloy wire, which can bear large load, stable and long service life.
  • The heating rate is fast, generally 0-30℃/min to be set freely
  • Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 32 segments
  • High precision of temperature control, small temperature compensation and temperature accuracy ± 1 ° C
  • Electronic components are used Schneider products, with leakage protection, safe and reliable
  • The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action
  • When the instrument program is set, just press the run button and the next work will be completed automatically
  • It can also be installed with an exhaust chimney and connected with stainless steel bellows to discharge the toxic and harmful gases volatilized in the furnace to the designated location.

Application

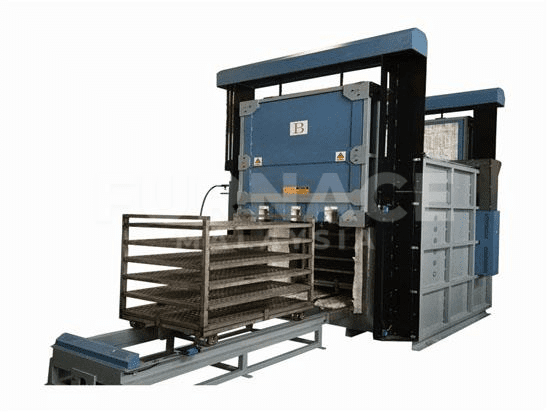

  • 1200°C car bottom furnace (box type resistance furnace) mainly provides high temperature heat treatment environment for industrial, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, ceramic materials, nano materials, and semiconductor materials.
Technical Parameters
Model WTM-3-14A WTM-8-14A WTM-12-14A WTM-18-14A WTM-27-14A WTM-36-14A OEM
Inner Dimension (WxDxH)mm 100×120×100 150×150×150 200×200×200 200×300×200 250×320×250 300×400×300 Any size
Outer Dimension (WxDxH)mm 383×432×660 510×560×870 600×620×920 600×693×920 610×730×970 1040×840×1250
Type Benchtop
Furnace Structure Alumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relative accessories
Max Temperature 1400°C
Continue Temp. 1600°C
Power Supply 220V/2kW 220V/4kW 220V/5kW 220V/6kW 380V/7kW 380V/13kW
Heating Element High quality Molybdenum Disilicide ( MoSi2) heater
Chamber Material High temperature 1800 Grade polycrystal alumina ceramic fiber material
Temp Precision ±1°C
Thermocouple B type
Temp Controller YUDIAN brand 518P Microprocessor PID controller as standard or any other brand as option
Electronic Parts SCHNEIDER (France ) main electronic parts /High quality electric transformer
Heating Rate ≤15°C/min ( suggest 10°C/min for longer life using of furnace )
Safety Protection Overheat and thermocouple-break alarm
Certification ISO9001 /CE/ SGS
Furnace Shell High quality cold-rolled steel sheets CNC processing
Insulation High quality thermal insulation material to ensure a good uniformity
Accessories One pair of high temperature gloves, One pair of furnace hook, one catalog and operation manual
Optional Paperless recorder, Stainless steel exhaust chimney, Quartz /Alumina crucible
