Attention: Burner factories, we have the best solution for the burner problems you’ve been facing!

YOUR SPECIALIST FOR INDUSTRIAL HEATING TECHNOLOGY

We design and produce our burner systems in accordance with skills and speciality thus acknowledging our client’s requirements and needs.

WIN-THERM are specialized for thermal enginneering providing you the BEST BURNER SOLUTIONS!

TRUSTED BY FORWARD-THINKING COMPANIES AROUND S.E.A

Industrial Burner

We have been manufacturing industrial gas burners for over 35 years and provide them with maximum reliability and effectiveness to your factories.



Our burner will have the energy efficiency, robustness and ease of service that is given by WIN Group as support for innovative burner solutions.





We recommend these types of burners

RHGBS "ETAMAT" series

Innovative recuperative burners with an efficiency of up to 90%

  • High-speed burner with integrated special recuperator for the highest possible heat recovery
  • Power range from 15 to 35 kW
  • Firing efficiency up to 90%
  • Multi-stage combustion with low emissions
  • Excellent temperature distribution due to high burner impulse
  • Maintenance-friendly, modular structure
  • All media connections can be moved in 90 ° steps
  • Direct flame monitoring to ensure maximum safety in all operating conditions
  • Separate cooling air connection possible to enable the specific operation of temperature ramps
  • Very low sound pressure level: below 60 dB (A)

K-RHGB-RN "REMAT" series

Efficient recuperator burners as a retrofit solution for existing systems

  • High-speed burner with integrated ceramic recuperator for efficient heat recovery, for indirect heating
  • Especially suitable when modernizing chamber furnaces that are heated with protective gas
  • All media connections to match existing systems
  • Easy direct ignition thanks to the patented ignition system, even under full load
  • Direct flame monitoring to ensure maximum safety in all operating conditions
  • Power range from 13 – 25 kW
  • Maximum application temperature at the recuperator: 1250 °C
  • Higher energy efficiency through improved heat recovery compared to existing burners
  • Multi-stage combustion with low emissions
  • Excellent temperature distribution due to high burner impulse
  • Simple and inexpensive basic maintenance
  • Significantly reduced wear due to ceramic components

RHGB series

Proven steel recuperator burners with high efficiency

  • High-speed burner with integrated steel recuperator for efficient heat recovery, for direct and indirect heating of industrial furnaces
  • Wide performance range from 7 to 250 kW
  • Maximum application temperature up to 1150 ° C
  • Very high efficiency
  • Multi-stage combustion with low emissions
  • Excellent temperature distribution due to high burner impulse
  • Easy direct ignition under full load thanks to the patented ignition system
  • Particularly maintenance-friendly modular structure
  • All media connections can be moved in 90 ° steps
  • Direct flame monitoring to ensure maximum safety in all operating conditions
  • Separate cooling air connection possible to enable the specific operation of temperature ramps
  • Easy and economical basic maintenance

K-RHGB series

Ceramic recuperator burners for application temperatures up to 1300 ° C

  • High-speed burner with integrated ceramic recuperator for efficient heat recovery, for direct and indirect heating of industrial furnaces
  • Wide power range from 9 to 250 kW
  • Maximum application temperature up to 1300 ° C
  • High efficiency
  • Multi-stage combustion with low emissions
  • Excellent temperature distribution due to high burner impulse
  • Easy direct ignition under full load thanks to the patented ignition system
  • Particularly maintenance-friendly modular structure
  • All media connections can be moved in 90 ° steps
  • Direct flame monitoring to ensure maximum safety in all operating conditions
  • Separate cooling air connection possible to enable the specific operation of temperature ramps
  • Easy and economical basic maintenance

K-RHGBE series

Inexpensive ceramic high-speed burners with an integrated recuperator burner tube

  • Economical high-speed burner with integrated recuperator combustion tube for heat recovery
  • Power range from 9 to 100 kW for direct and indirect heating of industrial furnaces
  • Maximum application temperature up to 1300 ° C
  • High combustion efficiency
  • Excellent temperature distribution due to high burner impulse
  • Easy direct ignition under full load thanks to the patented ignition system
  • All media connections can be moved in 90 ° steps
  • Direct flame monitoring to ensure maximum safety in all operating conditions
  • Separate cooling air connection possible to enable the specific operation of temperature ramps
  • Particularly maintenance-friendly modular structure
  • Easy and economical basic maintenance
  •

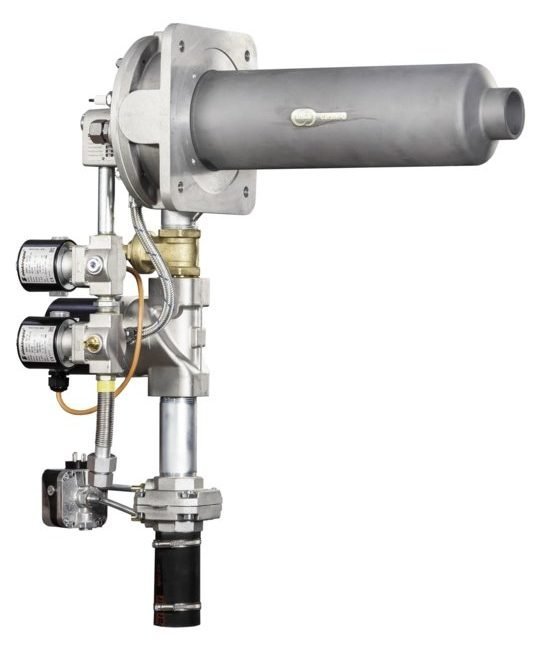

HGBE series

High-speed burners for direct and indirect heating of industrial furnaces

  • Cost-efficient high-speed burners in the power range from 9 to 160 kW
  • Maximum application temperature up to 1300 ° C
  • Suitable for cold and warm air operation (up to 400 ° C air preheating)
  • Excellent temperature distribution due to high burner impulse
  • Easy direct ignition at full load thanks to the patented ignition system
  • Particularly maintenance-friendly, modular structure
  • All media connections can be moved in 90 ° steps
  • Direct flame monitoring to ensure maximum safety in all operating conditions
  • Simple and inexpensive basic maintenance
  • Available in basic and complete configuration
  • Different burner tube lengths available on request

We believe in efficiency and we trust the brands that we provided to our manufacturers and partners. We are built for productivity!

That is why we want to bring you, the best heater element that’s has been recommended by all the companies in South East Asia.

Request a consultation call and we’ll bring you the best solutions

Here why to choose us as your heater element provider:

  • Quality heater elements
  • Branded products
  • Longer lifetime
  • Great product support
  • WIN group will provide parts support
  • Improve production efficiency
  • Reduce costing
  • Great engineering design support

Depending on your needs, we will help you based on your applications towards your industry and provide with the best solution to reduce cost and increase effieciency by 30%!
